Dryer Powder Mixer, V Shape/Square Cone/Two/Three Dimensional/Groove Blender/Ribbon/Screw /Trough/Cone Mixer for Pharmaceutical/Food/Chemical/Pesticide
| US$5,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
VHJ
Application
Granules, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Pharmaceutical
Certification
API, CCC, CE, ISO
Condition
New
Main Material
Stainless Steel
Stirring Type
Diving
Working
Diffusion Mixer
Cheap Price
Strong Technical Power
Professional Manufacturering
Experienced After Sale Service
Package
Wooden Case
Delivery
30days
Certificate
ISO14001 ISO9001
Applicaiton
Pharma, Food, Flavoring, Chemical
Mixer Type
V-Mixer
Layout Type
Horizontal
Mixing Drum Shape
Circular Groove
Operating Type
Continuous Operating
Warranty
1 Year
Transport Package
Standard Wooden Case
Specification
EYH
Trademark
Yutong
Origin
China
HS Code
847982
Production Capacity
5-4000kg Per Batch
Packaging & Delivery
Package Size
580.00cm * 230.00cm * 255.00cm
Package Gross Weight
6000.000kg
Product Description

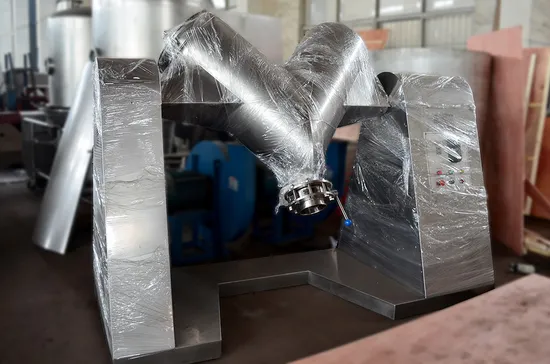

PRODUCT CATEGORIESProduct Description V Shape Mixer
The mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished. There is no internal transmission mechanism inside V type mixing equipment and it meets the GMP standard.
| Model & specification | VHJ-0.18 | VHJ-0.3 | VHJ-0.5 | VHJ-1.0 | VHJ-1.5 | VHJ-2.0 | VHJ-2.5 | VHJ-3.0 | VHJ-4.0 | VHJ-5.0 | VHJ-6 |
| Productive capacity (kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 | W4 | W4 | W4 | W4 |
| Feeding time (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Total volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 | 10 |
| Power of motor (kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 | 2300 | 2800 | 3250 | 3850 |
PRODUCT INTRODUCTION Features of V Shape Mixer
1. V type mixer machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect.
Application V type mixer machine is widely used in pharmaceutical, chemical and food industries. It is suited for mixing more than two dry powder or granular materials.
