Computerized ASTM D1646 Rubber Mooney Viscometer

Product Description

Product Description
Product Description

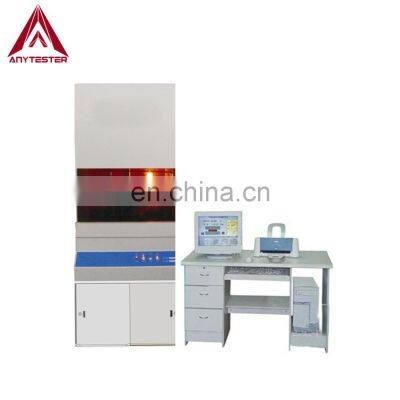

AT332 Mooney Viscometer is used to determine the Mooney viscosity, scorch time and vulcanization index of natural rubber, synthetic rubber and regenerated rubber.
Standard

ISO289	ISO667
ASTM D1646	GB/T 1232
Note: For more standards, please contact us!

Specification

Model	AT332
Temperature range	RT~200℃
Temperature accuracy	≤±0.3℃
Test range	0~200 Mooney value
Calibration accuracy	100±0.5 Mooney value
Rotor speed	2±0.02r/min
Measuring time	Scorch: 0~200min Viscosity: 4min or 8min
Test pressure	11.5KN ±0.5KN
Air source	0.45~0.6MPa
Power supply	AC220V 50Hz

Details & Features
★ High accuracy of temperature control, large temperature range★ Imported integrated circuit and control components
★ Integrated die cavity, high accuracy
★ Automatically determine the torque, real-time display temperature value and set value
★ After vulcanizing, automatically process, calculate, print Mooney curve, scorch curve and technology parameter
★ Computer real-time display test process, can directly read the changing process of temperature and time-Mooney viscosity from the computer
★ It is a necessary equipment for regenerated rubber, rubber and wire and cable industries
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
