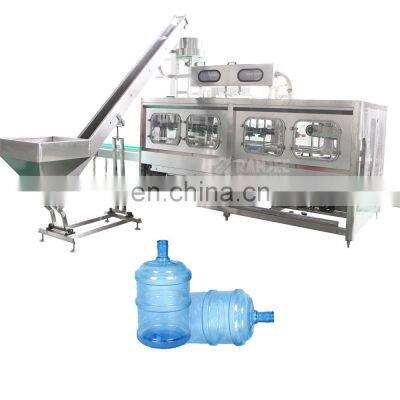

QGF-300 5 gallon mineral water filling machine price

Product Description

Product Description
Product Description
Brief introduction :
1) This 5 gallon water filling line specially produces 3&5 gallons barreled drinking water.
(2)This series barreled filling production line integrates bottle washer, filler and sealer into one unit.
(3) In order to achieve the purpose of washing and sterilizing, bottle washer adopts multiple liquid injections washing and disinfectant spray, and washing solution can be used circularly. The sealer can seal bottle caps automatically.
(4) This filling line equips with water spraying device to sterilize caps of bottles in order to ensure those caps are aseptic and healthy.
(5) This 5 gallon bottling line also can automatically carry out bottle washing, sterilizing, filling, capping, counting and products discharging.
(6) It has features of complete functional, easy operation, and high degree of automation. It is a new kind of 5 gallon barreled water auto-producing line, which integrates mechanism, electricity and pneumatics technologies together.
Main technical parameter:

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Volume	3&5 Gallon
Barrel size	Φ270*490mm
Capacity(b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Air pressure(MPa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption(m³/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated voltage	380V/ 50HZ
Weight(KG)	680	800	1500	2100	3000	3500	4500

Machine show:
Detailed Images

Automatic decaper Automatic cap pulling out machine is corollary production equipment specially designed for 5 gallons barrel drinking water filling and production line. It is compact, high working efficiency and stable and reliable, high degree of automation, it is the machine electrical Trinity corollary equipment for 5 gallon barrel automatic water production line.
	Automatic bottle interior and exterior brushing machine: Automatic barrel external brushing machine is special use for 5 gallon barreled drink water production line. Especially for mineral drink water, can effective remove the deposit and alga materials bring by mineralize on the bottom of the barrel, this machine is under bottom of the barrel, both rinsing the inside and outside the barrel, obvious improve the rinsing efficiency, reduce the second pollution by second manual brushing and fall the labor intensity.
Automatic bottle loader: The empty barrel cleaned by inside and outside brushing machine sending through automatic loading system by transmission chain, loading barrel counter counting 2pcs barrels, blocking barrel cylinder action to stop feeding barrel, loading and pushing barrel action, and pushing barrel to barrel inverting frame reset, loading cylinder action to invert the barrel to level position and waiting for feeding barrel.
	Washing part: It has 2 rows and 9 steps washing Water amount of filing: 6T/H Consumption of water: consumption of water 1T/H(disinfection water reuse, water reuse one time)
Filling part: Uploading and dropping barrels changed from 45 degree to translatory which is more stable. Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
	Capping part: Liquid level difference is controlled in 1cm. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.
Light checker and steam heating shrink machine: Inspection light is used for lighting when inspect whether exist sundries in barrel. Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam.
Leakage tester: leakage checking machine is a professional machine to check leakage, after gas filling, pressure keeping, pressure testing, the machine will push damaged barrels out of conveyor.
	Bottle conveyor system: Including: empty feeding system, plastic chain Full barrel conveyor system, SUS34 material

Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
