Heavy-Duty Grinding Machine with Permanent Magnet Chuck and Syntec CNC

Product Description

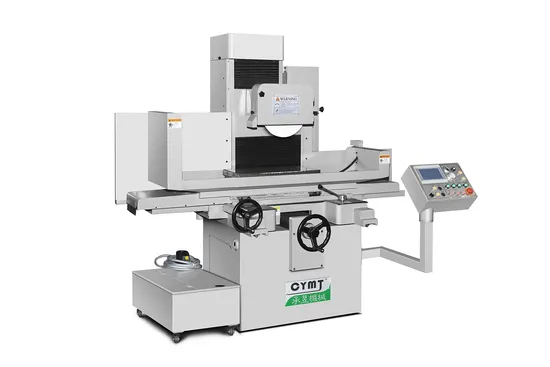

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
At Cheng Yu Machinery Technology Co., Ltd., we embrace a steadfast commitment to the ongoing enhancement of our product range. We retain the right to innovate and modify specifications, mechanics, or designs without prior notification or obligation, ensuring our products consistently exceed industry standards.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Established in the bustling heart of Dongguan City, Guangdong Province, Cheng Yu Machinery Technology Co., Ltd. boasts a rich history rooted in 30 years of Taiwanese grinding machine expertise. Our team is comprised of seasoned professionals who continue to push the boundaries of technology and innovation. In today's fast-evolving market, CNC machine tools are witnessing a revolutionary transformation characterized by high speed, precision, and intelligent technology. The trend is towards open, parallel-driven, network-integrated, environmentally sustainable solutions, which are setting the benchmark for future developments. Dongguan Chengyu Machinery Technology Co., Ltd. stands at the forefront of machine tool manufacturing and processing. We adhere to a 'technology, innovation, reliable' ethos, coupled with a 'meticulous' quality policy to deliver exceptional products and services. By comprehensively understanding our customers' production processes and quality requirements, we design superior solutions that redefine industry standards, ensuring top-tier automation, precision, and quality with our sophisticated quality management system and cutting-edge equipment. To meet market demands, Chengyu Machinery excels in crafting high-precision CNC surface grinders, CNC forming machines, four-axis punch grinders, vertical slider grinders, gantry rail grinders, and more. We also lead in designing and integrating industrial robots, automated production lines, presenting our esteemed CNC grinding machine series for your consideration: I. HS Series 618 / 250 / 3060 / 4080 / 40100 (Available in both servo and hydraulic types) Unmatched Processing Capacity: Surface grinding and precise grooving. Exclusive patented hydraulic control system (hydraulic type) for enhanced performance. Innovative Functionality: Programmed for flat surface grinding and groove cutting. Customizable Feed Mode: Options include front, back, left, or right, with memory for each grinding program's feed mode. Enhanced Safety: Automatic shutdown upon grinding wheel overload. II. (Available in both servo and hydraulic types) Comprehensive Processing: Surface grinding, grooving, and combined scheduling for complex tasks. Patented hydraulic control system (hydraulic type) ensuring top performance. Versatile Functionality: Programmed for surface grinding, groove cutting, sole and side grinding, including unequal distance and depth displacement grinding. Efficient Grinding Wheel Dressing: Automated bottom plane dressing, with set rough/fine grinding dressing time and amount, plus automatic cycle dressing and compensation. Flexible Feed Mode: Options include front, back, left, or right, with memory for each grinding program's feed mode. Advanced Grooving: Capability for both equidistant and non-equidistant unequal grooving. 3. Cutting-Edge Four-Axis CNC Grinding Machines: Available in horizontal and vertical types. Diverse Processing Types: From arbitrary equal division to skipping tooth processing. Precision Waist Circle: Simply input AB size for accurate results. Triangle Fillet Perfection: Enter inscribed circle size B and fillet size R. Quadrilateral Fillet Engineering: Input side lengths A and B, along with fillet size R for precise outcomes. Eccentric Circle Expertise: Input eccentricity, starting, and ending diameters for flawless execution. Perfect Circles: Enter starting and ending diameters for exact circle processing. Arc: Simply input the desired arc size and specify the rotation angle to achieve precision in every curve. Step Difference & Rotation Profile: Seamlessly manage step differences and tailor dynamic rotation profiles for enhanced performance. Processing Schedule: Effortlessly save your processing schedule as a dedicated processing file, ensuring convenient retrieval and consistency in future operations.
