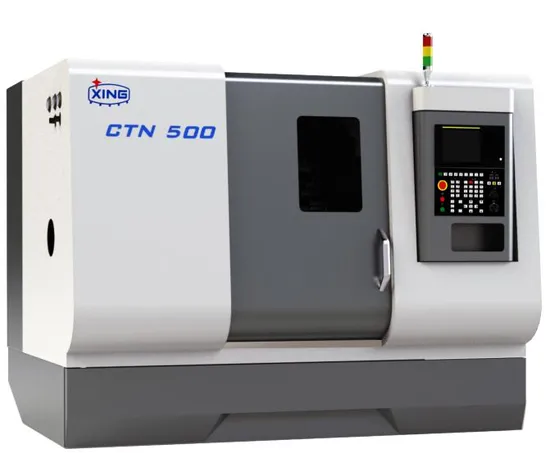

High Performance Turning Center CTN500

Product Description

	item	specification
1	Max. swing dia. over bed	650mm
2	Max. turning dia. of workpiece	360mm
3	Distance between centers	600mm
4	Bed form	step-wise
5	Middle pallet	30°
6	Max.X stroke	240mm
7	Max.Z stroke	650mm
8	Rapid feed X/Z	18/36m/min
9	X/Z motor speed	3000RPM
10	Z axis linear guide width	45mm( roller style)
11	Ball screw X/Z	3206/4012
12	Spindle speed	100-4000RPM
13	Spindle nose	A2-6
14	Spindle bore	66mm
15	Power of main motor	7.5KW
16	Spindle clamp	8 inch hydraulic chuck
17	Chuck bore	55mm
18	Tool holder	Hydraulic Turret(taiwan)/servo turrret/servo power turret
19	Number of tool holders	12
20	Standard blade size	25×25mm
21	Maximum boring tool diameter	40mm
22	Tailstock stroke	590mm
23	Tailstock diameter	110mm
25	Tailstock taper	MT5
26	positioning accuracy X/Z	0.019/0.029mm
27	repositioning accuracy X/Z	0.005/0.005mm
28	Overall dimensions of machine	2550x2100x1850mm
29	Case dimensions of machine	2650x2250x2280mm
30	Net weight /gross weight of the machine	4000/4300kg

Product Details:
Packing and Delivery:
company information:
Shandong Linyi Jinxing Machine Tool Co., Ltd.was founded in 1965 and locates in Shandong Linyi high-new technology development zone. It is national high-new technology enterprise on patents in Shandong province. It owns provincial level high-tech R&D center.
It mainly deals with the development,manufacturing and sales of machine tools. It has the yearly capacity of manufacturing vertical machinning center,CNC milling machine,CNC lathe,common machine tool,multi-purpose machines etc.over ten thousands sets.
The company has passed through ISO9001 Quality System Certificate and owns self-operation right of import and export. some products have passed through CE certificate.Its products are sold widely at home and over more than 30 countries and districts abroad such as USA,Canada,Germany ,Italy,Hungary,Australia,South Africa,Korea and Japan,etc.-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------Technology support :
Professional after-sales service team: We can Provide Spare parts replacement and repair service
Competitive price:We can recommend the most suitable machine according to your budget and customer needs, and give you a favorable price.
OEM Accepted:We can produce design as your requied.please contact us.
We have strict quality control system.please believe our quality.MOQ: 1 set .Terms of Payment: T/T (30% in advance and delivery on 100%) If you have any questions ,please feel free to contact us. Shandong Linyi Jinxing Machine Tool Co.,Ltd. Amy Li
