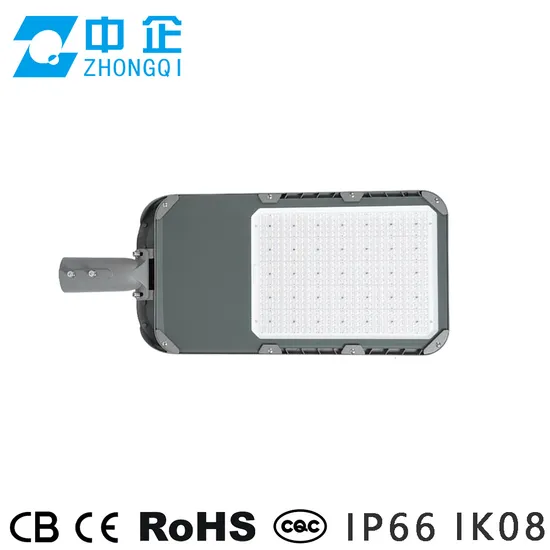

Factory Price Luminaire Customized Solar Street Light with Smart LED Driver Motion Sensor Stainless Steelce RoHS Airport Lighting
| US$31.00-85.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
ZQL-L310
Lamp Body Material
Aluminum
Power
30-240W
Application
Square, Highway, Garden, Parking Lot, Airport Pathway
IP Rating
IP66
Certification
CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, VDE
Input Voltage
90-305V
With Light Source
With Light Source
LED Chips Brand
Osram
Surface Treatment
Powder Coating Anti-Corrosion Anti-Salt Spray
Housing Color
White Black Grey Customized
Beam Angle
Type II Type III Type IV Type V
Lpw
120lm/W - 200lm/W
Material
Tempered Glass PC Lens Wago Connector Aluminum
LED Type
5050 / 3030 /3535 LED Chip
Option
Microwave Sensor Zhaga NEMA
Tooling
Die-Casting Aluminum Private Mould
Anti-Vibration Rating
Horizontal Vertical Adjustable
Service
Dialux Light Simulation
Application 2
Urban Public Lighting Area Lighting Airport Lighti
System Power
50W 60W 100W 120W 150W 200W 250W 300W
Surge Protection
10kv SPD / 20kv SPD
Transport Package
Carton
Specification
840*380*180mm
Trademark
ZQ
Origin
China
HS Code
9405429000
Production Capacity
200000
Product Description
Product Description| Product Features | |||||||
| L310 for urban and street lighting of high architectural value | |||||||
| High pressure die casting housing, which has advantages of impact resistance and corrosion resistance. | |||||||
| Luminous flux can maximum 180 lumen per watt, Different CCT is available on customer request | |||||||
| High light transmittance lens available: TYPE II, TYPE III, TYPE IV, TYPE V | |||||||
| Tempered glass protect PC lens exposing from UV, moisture, dust environment, better lighting output effects | |||||||
| IP66 driver chamber structure, different configurations can be integrated with IOT Smart System for creating modern Smart Cities | |||||||
| Horizontal and vertical mounting options | |||||||
| Toolless operation design makes fixture easy to install and maintain | |||||||
| TECHNICAL PARAMETERS | |||||||
| Item name | Input voltage | Freqency range | Power Factor | CRI | CCT | Lifetime | Ta |
| Street light | AC90-305V | 50/60HZ | 0.95 | >70 | 2700-6500K | >50000H | -25ºC~55ºC |
| IP Grade | IK | LPW | THD | Dimming | Color | Mounting | Pole diameter |
| IP66 | IK08 | 100-150 | ≤20% | YES | Customized | Adjustable | 48-60mm |
| Product Model | Power(W) | Premium LPW(lm/W) | Standard LPW(lm/W) | N.W.(kg) | G.W.(kg) | Product Size(mm) | Packaging Size(mm) |
| ZQL-L310 | 60 | 150 | 130 | 2.88 | 3.68 | 514*200*60 | 535*210*110 |
| ZQL-L310 | 80 | 150 | 130 | 2.88 | 3.68 | 514*200*60 | 535*210*110 |
| ZQL-L310 | 100 | 150 | 130 | 3.27 | 4.27 | 564*220*60 | 605*265*110 |
| ZQL-L310 | 120 | 150 | 130 | 3.39 | 4.39 | 564*220*60 | 605*265*110 |
| ZQL-L310 | 150 | 150 | 130 | 4.29 | 5.49 | 634*240*60 | 740*320*155 |
| ZQL-L310 | 180 | 150 | 130 | 4.33 | 5.53 | 634*240*60 | 740*320*155 |
| ZQL-L310 | 200 | 150 | 130 | 6.03 | 7.53 | 665*290*60 | 780*350*150 |
| ZQL-L310 | 240 | 150 | 130 | 6.20 | 7.70 | 665*290*60 | 790*320*155 |
Product Details
Company Profile
Packaging & Shipping
FAQ
Q1:Can I have a sample before quantity orders?
Yes,we welcome sample order for your approving
Q2.What about lead time?
Sample 3-5 days, quantity order 25-30 days
Q3.ODM or OEM is accepted?
Yes,we can offer ODM&OEM service
Q4.Howe long the warranty for your products?
We offer 2-5 years warranty to our products
Q5.What about the payment?
30% TT deposit, 70% before shipment
