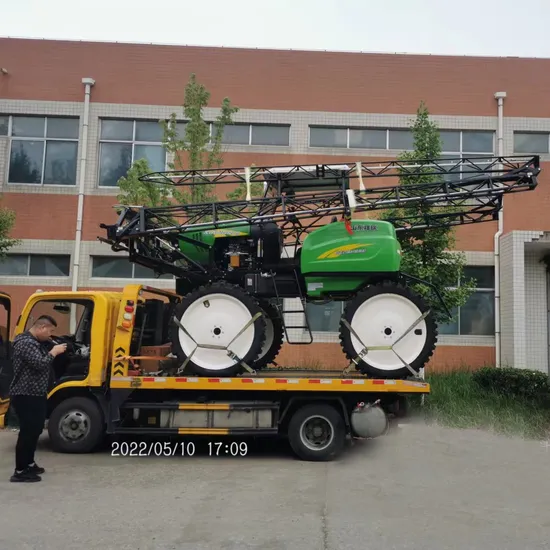

1300L Four-Wheel Sprayer Paddy Field Agricultural Four-Wheel Sprayer Small Upgraded Self-Propelled Sprayer Tractor Boom Sprayer for Corn
| US$17,000.00-20,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
1300L
After-sales Service
1 Year
Warranty
1 Year
Installation
Self-Propelled
Liquid Contained
Disinfector, Pesticide
Spraying Shape
Full Cone
Volume
1300 Liter
Power Supply
Pressure
Technics
Injection Molding
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Tank Capacity
1300 (LLDPE)
Boom Length
20100 mm
Ground Clearance
1.2 M
Drive Mode
Four Wheels Driving
Gearbox
Mechanical
Wheelbase
2300 mm
The Track of Vehicle
1500m
Battery Capacity
24V 60ah
Boom Lifting Height
500 1900 mm
Wheel Track
1800 mm
Dimensions
5450*2350*3300 mm
Cab Type
Canopy
Mixing Mode of Pesticide
Jet Flow+Back Flow
Specification
1300L
Trademark
OEM
Origin
Linyi Shandong
HS Code
84244900
Production Capacity
3000 Per Year
Product Description
| Item | Content | Unit | Model | ||
| 3WPZ-1300C | 3WPZ-1300CJ | 3WPZ-2000BJ | |||
| Overall Size | Dimensions | mm | 5450×2350×3300 | 5450×2350×3300 | 5500×2700×3700 |
| Boom Length | mm | 20100 | 20100 | 20100 | |
| Boom Lifting Height | mm | 500-1900 | 500-1900 | 1450-2900 | |
| Ground Clearance | m | 1.2 | 1.2 | 1.72 | |
| Wheel base | mm | 2300 | 2300 | 2620 | |
| Wheel track | mm | 1800 | 1800 | 2540/(2200-2600) | |
| Cab type | / | canopy | cab | cab | |
| Spraying System | Working Pressure | Mpa | 0.2-0.5 | 0.2-0.5 | 0.2-0.5 |
| Tank Capacity | L | 1300 (LLDPE) | 1300 (LLDPE) | 2000 (LLDPE) | |
| Mixing Mode of Pesticide | / | Jet Flow+Back Flow | Jet Flow+Back Flow | Jet Flow+Back Flow | |
| Spray Width | m | 20.1 | 20.1 | 20 | |
| Working efficiency | m2/h | 55000-66000 | 55000-66000 | 66000-99900 | |
| Fuel consumption | liter/h | 13 | 13 | 13 | |
| Nozzle Type | / | Cone Spray/42 pcs | Cone Spray/42 pcs | Cone Spray/42 pcs | |
| Material of Boom | / | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy | |
| Position of Boom | / | Front | Front | Front | |
| Driving Mode of Liquid Pump | / | Hydraulic | Hydraulic | Hydraulic | |
| Engine System | Rated Power | kw/ (rpm) | 74/2400 | 74/2400 | 74/2400 |
| Battery Capacity | / | 24V 60AH | 24V 60AH | 24V 60AH | |
| Driving System (3+2)x2 | Driving Type | / | 4WD | 4WD | 4WD |
| Steering Type | / | 4WS | 4WS | 2WD\4WD\oblique walking | |
| Tire Type | / | Pneumatic | |||
| Tire Outer Diameter | mm | 1400 | 1400 | 1350 | |
| Tire Width | mm | 130 | 130 | 200 | |
| Turning radius | mm | 3600 | 3600 | 4000 | |
| Driving speed | km/h | 0-24 | 0-24 | 0-24 | |
| Fertilizer spreader | Spreading width | m | 25 | 25 | no |
| Fertilizer tank | liter | 700 | 700 | no | |
| Optional | Double disc type fertilizer spreader | no | |||
Product Description
1. New self-designed sixth-generation high-end drive axle, can adapt to various harsh environments;
2. The four-wheel steering, less pressure seedlings,flexible control;
3.The machine design is ergonomically verified, with small turning radius;
4. convenient maintenance, spacious and comfortable driving space;
5. Spraying and spreading fertilizer can be carried out at the same time to meet the needs of high-end users.
Company Profile
Xiangrui is a professional company manufacturing self-propelled boom sprayer of 700 liters,1000 liters,1300 liters,2000 liters and 4000 liters, which are widely used for spraying rice, wheat, corn, soybean,vegetables and other crops, greatly improving labor efficiency and pesticide utilization.There are 11 professional technicians, who have many years of experience in plant protection machines, Our company has passed the ISO9001 quality management system certification, CE, national compulsory product 3C certification.
Certifications
Packaging & Shipping
FAQ
Q1: Manufacturer or Trading Company? We are a manufacturer since 2014.Q2: How about the quality? Our self-propelled boom sprayer sales is no. 1 in China, the quality is very good.Q3: What's the delivery time? Normally 15 days after receiving deposit.Q4: How about the gurantee? Our axle guarantee is 2 years!
