PUR Glue Hardcover Book Binding Machine A4 Binder

Product Description

Video link: https://youtu.be/B1ir6n40_PQ

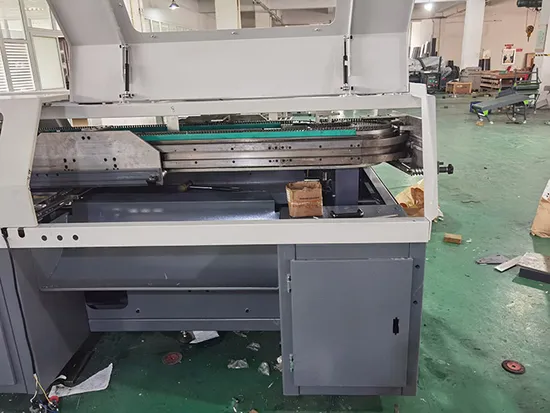

TBT50 ellipse glue-binding covering machine is high-tech glue-binding covering machine in 21st century, which is driven by 4 book end chain form, and avoids the too much driving momentum in traditional disk covering machine and the intermittent problems easily happened between the axes.

This machine uses computer operating systems frequency conversi on speed adjustment control, PLC programmable controller, photoelectrical iden tification, automatic check control and touch screen and many other advanced technologies. There is digital display function in the glue breaking function back and forth, mill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, and the book acceptance structure is level method and protects the book back forming in better way. This machine not only uses lock line gluing packaging, but also unwiring gluing packaging, which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.
Main parameters:

Binding size	Max:450X300mm Min:150X105mm
Binding thickness	2-50mm
Binding speed	Max:2300 Books/ Hour
Power required	14Kw
Weight	2100Kg
Dimensions	3900x1330 x1250mm

Heavy-duty type:
Major characteristics of double columnguided twin-cam upper-sealing mechanism:
(1). Strong wearing resistance
(2). High precision
(3). Great clamp force
(4). Steady top down
(5). Indeformable front and back clamp plates
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patents.

This machine is offered the book core by manpower, and automatically finishes 10 procedures below:

1. Milling back(Automatic adjust);	2 . Opening groove;
3. Back mucus coating; (Gluing pot automatic adjust)	4. Side mucus coating;(Automatic Adjust)
5. Cover and book core compossing; (Automatic adjust)	6. Cover impressing;(Automatic adjust)
7. Cover packing;(Automatic adjust)	8. Finshed-product output;(Automatic adjust)
9. Book spine pressing;	10. Cooling, till final nice products.
