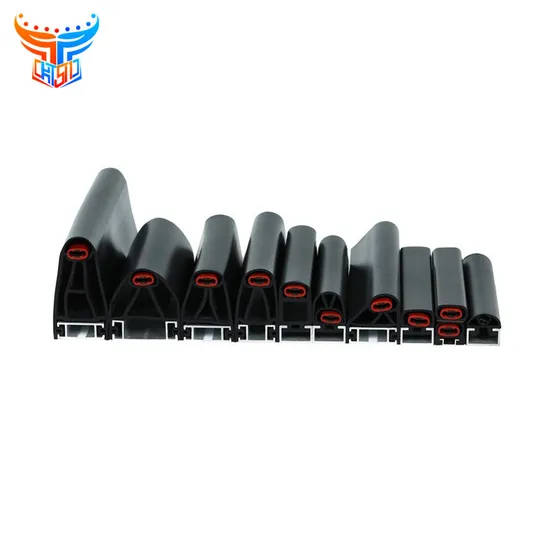

Agv Robot Safety Tape Switch Pressure Sensitive Rubber Edge Sensor
Basic Info.
Model NO.
KT-txz
For
Auto Carrier, Robot,Conveyor
Output Signal Type
No,Nc
Production Process
Injection
Material
Rubber
Thread Type
M
Wiring Type
Two-Wire & Four-Wire
Measuring Medium
No
IP Rating
IP65
Certification
CE
Customized
Customized
Transport Package
Carton
Specification
customized
Trademark
kaitianshenniu
Origin
China
HS Code
8538900000
Production Capacity
500000
Product Description
| Property | Technical Parameters |
| Material | Rubber |
| Colour | Black or Other |
| Length | 1000mm(Change according to customer requirements) |
| Hardness | HS 55--70 |
| Fixing method | Aluminum profile or Other |
| Cable direction | Horizontal or vertical |
| Cable length | 1000mm(Change according to customer requirements) |
| voltage range | ≤30V |
| Current range | ≤0.3A |
| Trigger force value | ≥30N |
| Trigger distance | 5mm |
| On resistance | ≤100Ω |
| Signal status | N0 or NC (2 cables or 4 cables) |
| Bending radius | R≥100mm |
| Use environment | temperature-10ºC---80ºC humidity 0--80%RH |
| Ultimate impact force | 1000KG |
| Mechanical Endurance | 80,000 times |
