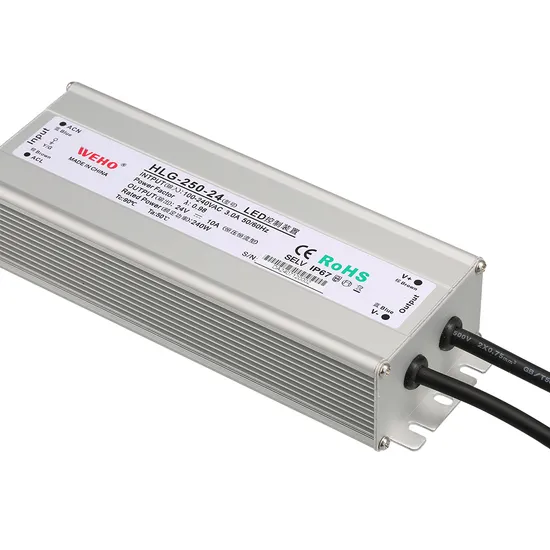

LED Driver Power Supplies Hlg-250-12 250W 12V 10A 20A High Quality AC to DC Single Output SMPS Switching Power Supply for LED Lighting

LED Driver Power Supplies Hlg-250-12 250W 12V 10A 20A High Quality AC to DC Single Output SMPS Switching Power Supply for LED Lighting

US$15.00
2-99 Pieces
US$14.25
100-499 Pieces
US$13.54
500-999 Pieces
US$12.86
1,000+ Pieces

Basic Info.

Model NO.
HLG-250-12
Driving Method
LED Constant Current
Circuit Structure
Conventional Step-down Transformer
Certification
CE, RoHS, ISO9001
Power Supply Mode
Constant Current Source
Modulation System
PWM
In-Out
Step-down Type
Power Supply Voltage
95~264
Brand
Weho
Dimension
205*69*43mm
Weight
1.1kg
Packing
20PCS
Short Circuit Protection
Hiccup Mode: Recover Automatically Normal Output a
Impulse Current
Cold Start Current 45A/230VAC
Efficiency
92%
Wave and Noise
180MVP-P
Transport Package
Carton or Plywood Case
Specification
205*69*43mm
Trademark
WEHO
Origin
Zhejiang
HS Code
8504401400
Production Capacity
50000/Year

Packaging & Delivery

Package Size
20.50cm * 6.90cm * 4.30cm
Package Gross Weight
1.100kg

Product Description

Product Description Led Driver Power Supplies HLG-250-12 250W 12V 10A 20A High Quality Ac to Dc Single Output Smps Switching Power Supply For Led Lighting
Features:
1. 95-264V AC Input
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
Detailed Photos
Product Parameters
Model HLG-250-12 HLG-250-24 HLG-250-36 HLG-250-48
DC output voltage,ratedcurrent 12V 20A 24V 10A 36V 6.9A 48V 5A
Wave andnoise 180mVp-p 200mVp-P 220mVp-P 220mVp-P
Line regulation ±0.5% ±0.5% ±0.5% ±0.5%
Load regulation ±2% ±0.5% ±0.5% ±0.5%
Efficiency 0.9 0.915 0.93 0.935
Voltage accuracy ±3% ±2% ±2% ±2%
Input voltage range 95~264VAC/135~373VDC 47~63Hz
Impact current Coldstart current 45A/230VAC
Overcurrent protection 95%~108%of the rated output current starts overcurrent limit,recover automatically after abnormalconditions areremoved
Short circuit protection Hiccup mode:recover automaticallynormal output after abnormal conditions are removed
Setup,rise,hold uptime 200ms,30ms,20ms/230VAC (at full load)
Pressure resistance I/P-O/P:1.5kV I/P-FG:1.5kV O/P-FG:0.5kV
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MOhms/500VDC/25ºC /70%RH
Working temperature 20C~+60C
Dimension 205×69×43mm
Weight 1.1kg
Packing 16PCS
Certifications
Packaging & Shipping
Company Profile
FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us
A2:We have been engaged in the switching power supply industry for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A7:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your switching power supply?
A8: Three years.
