DC24V 840chips RGB Color Changing COB LED Strip

DC24V 840chips RGB Color Changing COB LED Strip

US$3.80
5-499 Meters
US$3.60
500-999 Meters
US$3.20
1,000-2,999 Meters
US$2.80
3,000+ Meters

Basic Info.

Model NO.
MB-FS-COB-RGB-840/20-15W
Emitting Color
Changeable
Voltage
DC24V
IP Rating
IP33
LED Chip Per Meter
840
PCB Width
10mm
Color
RGB
Working Voltage
DC24V
Wattage
15W/M
Transport Package
5m/Reel
Specification
COB RGB Strip
Trademark
Maxblue
Origin
Shenzhen, China
HS Code
94054090
Production Capacity
20, 000m/Week

Packaging & Delivery

Package Size
25.00cm * 25.00cm * 7.00cm
Package Gross Weight
0.500kg

Product Description

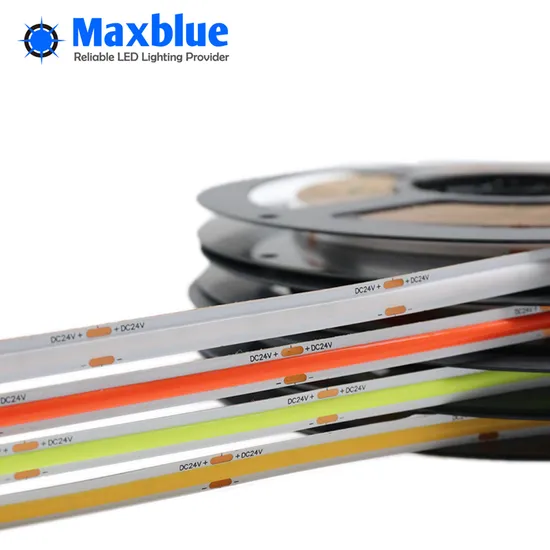

DC24V 840chips COB LED Strip RGB Color Changing Light
Product Description
The COB LED strip features with 180° beam angle and no-spot continuous linear lighting, which is helpful to have soft and uniform lighting output. Its flexibility and easy-to-cut can be used to DIY as cabinet lighting, canopy lighting, etc. Besides static single color, this COB LED lights also offer multi colors as the like RGB, RGBW, and CCT tunable dual white. This LED strip COB 12/24Vdc is available now as below. Samples and specification are ready upon your request.
Flip Chip On Board LED Strip Lighting Advantage
:: Turly dotless & continuous, ideal for linear and indirect lighting
:: 180° beam angle, wider lighting distribution than 120° SMD LED beads.
:: Super perfect color unifomity, soft and cozy lighting without glare.
:: 12/24Vdc design available.
:: Constant current IC version available for same brightness between two ends. Product Parameters
TECHNICAL DATA
Product Product Name COB LED Strip Light RGB Multicolor
Model No. MB-FS-COB-RGB-840/20-15W
Manufactured by Maxblue Lighting
LED Lifetime 30000Hrs
Warranty 3 years
Electrical Spec Max. Wattage 15W/M
Working Voltage DC24V
Max. Current/M 0.625A
Lighting Spec LED Type COB
CHIP Brand EPISTAR/SANAN
LED Chip Size 9*22mil
LED Q'ty/Meter 840 chips/M
Color RGB Multicolor
Color Temperature / CCT /
Color Rendering Index / CRI /
Luminous Output /
Light Efficiency /
Energy Efficiency Class /
Beam Angle 180°
Dimmable Yes, by PWM
Dimension Standard Length 5Meter
PCB Width 10mm
Height 2mm
Cuttable Unit 25 mm
Others Install 3M Adhensive Tape
Standard Cable Length 15cm red/black at one side
Package 5M Per Anti-static foil bag
IP Rating IP20. IP65/IP67/IP68 available on request
OEM/ODM Available (different size, wattage, color/cct, cable)
Environment Operating Temperature -25°C~45°C
Storage Temperature -30°C~60°C
Environment Humidity 40-70% RH
Detailed Photos
CONTACT US NOW to get the price and free sample testing:https://maxblue.en.made-in-china.com/contact-info.html

LED Strip Application a. Indoor and outdoor decoration lightings.
b. Large scale backlight.
c. Display lighting or Window display lighting.
d. Building contour decorative lighting.
e. Advertising Signs, light boxes.
f. Landscape outlines.
g. Car and motorcycle decorative lighting.
h. Bridge edge lighting.
i. Architectural decorative lighting.
j. Emergency hallway lighting.
k. Festival lighting, like Christmas.

OUR MISSION Vision:
For better lighting the world and keeping the blue sky maximum.
Mission:
To be one of the best products and service brands in Led lighting industry.
Core Value:
We would like to follow the advanced technology to develop the products with:
Eco-friendly & Energy-saving: make less CO2 emission with using led products.
Reliable: our strict quality control system makes sure the products work in stability within the life span.
Affordable: offering the reasonable price to make sure the end user enjoy the latest technology.
ABOUT US Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor Led lighting and commercial Led decoration, devoting to delivering eco-friendly, affordable and stable Led products for the customers. Now we focus on led flexible strip, led linear light, led cob downlight, led panel light, led track light, led wall washer etc.
With our ISO9001:2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.
Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
FACTORY VIEW
FAQ
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: maxblue.en.made-in-china.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Q8: How to contact us?
Send your inquiry in the below for Price list and more detailed information, hot-selling and discount Now!
