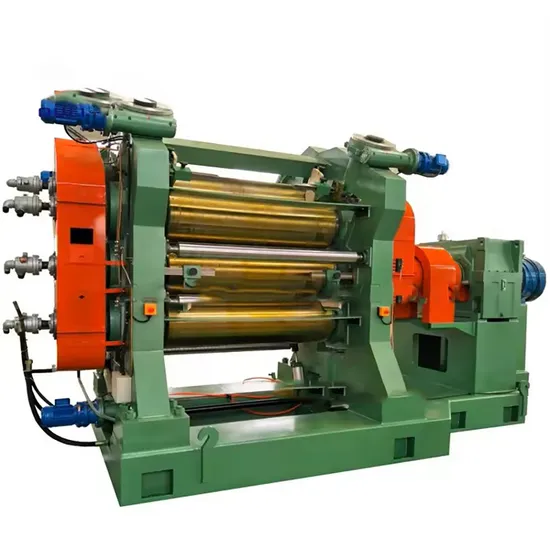

Junlin Turee Roll Calender for Rubber/Plastic Xy-3 710 X 2130

Product Description

Basic Info.Basic Info.

Mode	XY-3 710x2130
ltem
Linear speed of front rollers (m/min)	8-50
Speed ratio of front and rear roller	1:1:1
Max product width(mm)	1850
Min product thickness(mm)	0.2
Motor Power (kw)	185
Overall size L x W x H (mm)	7650*4560*4080
Weight (kg)	~67

junlin Product Description
Rubber calender is the basic equipment in the process of rubber products, it is mainly used to put rubber on fabrics, to rubberize fabrics, or to make rubber sheet.
Features:
1. Rolls: chilled alloy cast iron rolls with surface hardness 68~72hs. the rolls are mirror finished &
polished, duly grinding and are hollowed for cooling or heating.
2. Roll clearance adjusting unit: nip adjustment at two roller ends is done manually using two separate
screws attached to the brass housing body.
3. Roll cooling: universal rotary joints with inner spray pipes with hoses and headers. piping is complete
up to supply pipe terminal.
4. Journal bearing housing: heavy duty steel casting housing fitted with anti friction roller bearings.
5. Lubrication: full automatic grease lubrication pump for anti friction roller bearings fitted in dust
sealed housing.
6. Stand frame & apron: heavy duty steel casting.
7. Gearbox: hard-tooth reduction gearbox, GUOMAO brand.
8. Base frame: common base frame heavy duty, steel channel and ms plate fabricated accurately
machined on which whole machine with gearbox and motor are fitted.
9. Electric panel: star delta electric operating panel with auto reversing, voltmeter, ampere, overload
protection relay, 3 phase indicator and emergency stop switch.
XY-252~810 Rubber Calender
Rubber calender:
Mainly used for calendering of rubber and plastic ,frictioning and rubberizing for fabric,plastic production and compound of plastics.Specification:
2 rolls,3 rolls,4rolls, 252-810,l type ` r type` F type ` S type

Mode	XY-2 252X720	XY-2 360X1120	XK-2 450X1500	XY-2 550X1830	XY-2 610X1730	XY-2 710X2130	XY-2 810X2430
ltem
Linear speed of front rollers (m/min)	1.2-12	3-20.2	2.5-26	3-30	5.4-54	8-50	4-40
Speed ratio of front and rear roller	1:1	1:1	1:1	1:1	1:1	1:1	1:1
Max product width(mm)	580	920	1600	1600	1500	1850	2150
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor Power (kw)	15	37	75	75	90	110	160
Overall size L x W x H (mm)	3950*1110*1590	5400*1542*1681	7013*1595*2446	7200*1760*2760	5987*1860*2988	8150*3760*3630	8690*3139*4270
Weight (kg)	~5	~11.5	~14	~24	~30	~49	~62

Mode	XY-3 252X720	XY-3 360X1120	XY-3 450X1500	XY-3 550X1500	XY-3 610X1730	XY-3 710X2130	XY-3 810X2430
ltem
Linear speed of front rollers (m/min)	1.2-12	3-20.2	2.5-26	3-30	5.4-54	8-50	4-40
Speed ratio of roller	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1	1:1:1
Max product width(mm)	580	920	1250	1300	1500	1850	2150
Min product thickness(mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Motor Power (kw)	22	45	75	110	160	185	132KW*3
Overall size LxWxH(mm)	3950*1720*1210	6500*1500*2440	7320*2200*2900	7550*2400*3800	7010*3950*3730	7650*4560*4080	11400*3200*5050
Weight(kg)	~5.5	~14	~21	~35	~42	~67	~110

Type	XY-4 230*630	XY-4 360*1120	XY-4 400*1200	XY-4 450*1400	XY-4 610*1730	XY-4 700*1730	XY-4 710*2130	XY-4 800*2500	XK-4 860*2500
Roll diameter(mm)	230	360	400	450	610	700	710	800	860
Roll working length(mm)	630	1120	1200	1400	1730	1850	2130	2500	2500
Roll speed ratio	1:1:1:1	0.73:1:1:0.73	1:1.38:1.38:1	1:1.5:1.5:1	1:1.4:1.4:1 1:1.4:1.4:1.4	0.5-1 Adjustable	1:1.5:1.5:1	0.5-1 Adjustable	0.5-1 Adjustable
Middle-roll linear speed(m/min)	2.1-21	2-20.1	3-26.3	2.5-25	8-50	4-40	3-30	4-40	4-40
Adjusting nip range	0-10	0-10	0-10	0-10	20	0-30	0-20	0-30	0-30
Min calendaring product thickness	0.2	0.2	0.2	0.2	0.15	0.2	0.15	0.2	0.2
Production calendaring width	500	920	1200	1250	1500	1600	1900	2200	2200
Motor power	15	55	75	110	185	90KW*2 110KW*2	220	132KW*4	160kw*4
Overall size LxWxH(mm)	3800*930*1890	3300*940*2350	6400*1620*2490	6500*1970*2740	6580*2460*2920	9950*3600*4870	7010*4150*3730	10400*3900*5140	12000*3800*5850
About weight (t)	~4.8	~16	~20	~23	~50	~110	~100	~130	~180

Problems of customer concern:
About machine performance quality
1.Q:How old is Junlin factory?
A:The company has a history of 15 years since its inception in 2009
2.Q:What is the delivery time?
A:The delivery time of the machine is 15-60 days
3.Q:Which countries can I send to?
A:It can be delivered anywhere in the world
4.Q:How about the quality of the product?
A:The machine is guaranteed for up to one year. During the problem company to send accessories
