Dakiou Low Speed Paper Cup Making Machine

Product Description

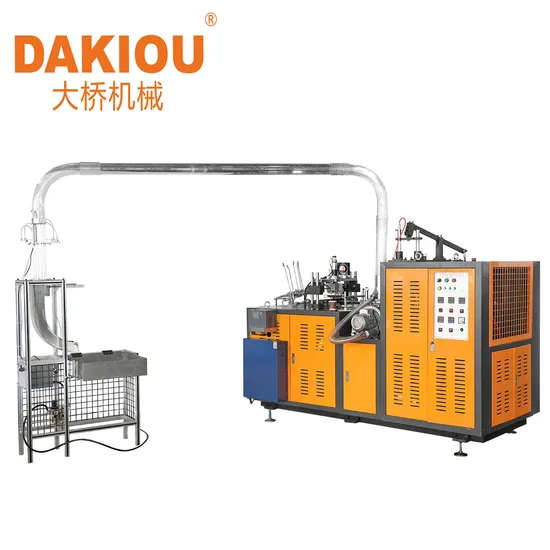

New type ZB-D Automatic Paper cup machine
Product Description
Detail:
Our newly designed ZD paper cup forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through more than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre
heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved in stability after comprehensive technical improvements.
Main Technical Specification:

Model	ZB-D12S Automatic Paper Cup Machine
Paper Cup Size	3-12oz(Mould changeable)
Raw Material	150-300g(One-side or Two-side PE (polyethylene) film coated / laminated paper)
Suitable paper weight	180-300g
Productivity	60-80 Pcs /Min
Power Source	220V/380V 50Hz
Total Power	4KW
Total Weight	2000KG
Package Size(L x W x H)	2500x1200x1400mm(LxWxH)
Working Air Source	0.4-0.5m3/min
Making Double PE coated paper cups, need to buy an air compressor

Paper Cup's General Size :
A= bottom diameter(outside), B=top diameter (outside), C=height,
The above three sizes are demanded .
The other sizes, E=side sealing width, F=bottom knurling height, G=top curling diameter, The more details providing is appreciated.
If you don't offer the sizes E,F,G . We will choose the General Size for you.

From the above image, the steps in the red box are finished in our paper cup
The whole steps are :
1 . Buy the cutted bottom-using rolling paper and cup-side-using sheet paper from PE coated paper suppliers ; In this step, the suppliers will cut the paper sizes according to your requirement.
2 . Pre printing and pre cutting, you can let them done out-serve or buy machines to finish them ;
3 . Forming Cups in paper cup machines ; The same for paper bowl/bucket.
4 . Packing the finished cups in plastic bags and then to cardboard box.
Cups and Bowls and Plates samples show:

1.Spare parts guarantee for one year in machine arrival.
2.Send the technician for installation & training.
3.Offer Service Online
Our Services Send technician to stall and adjust the machine.
Train the operators
Offer service online.
Company Information
FAQ
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company
2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou internationalairport first, and then we can send a car to pick up you.
3.Q:Can your products be customized?
A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.
4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
