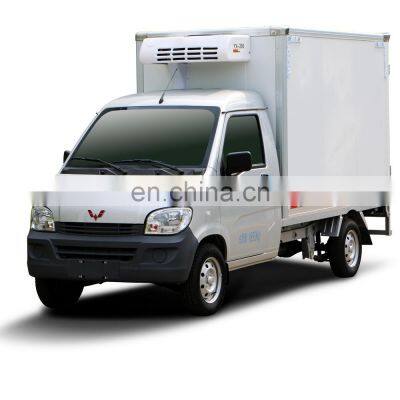

van type refrigeration small truck

van type refrigeration small truck

Product Description

Product Description
Product Description
The chassis of wuling special purpose vehicle series is from SGMW, a joint venture by GM,Shanghai motors and Wuling motors, it sold 2 million units vehicle all over the world in year 2016.
We have professional refit vehicle team, and can not only produce large quantities of assembly line products, but design and manufacture customized products according to customers.
Specifications:
ItemLQG5020XLCBQY
SizeDimension (mm)4533*1503*2374
Box container(mm)2454*1328*1535
Wheelbase (mm)2950
WeightTotal weight(kg)1850
Curb weight(kg)1360
Passenger Capacity2
PerformanceMin Turning Diameter(m)11.8
MIN.Clearance(mm)135
Max Speed(km)120
EngineDisplacement(ml)1206
ModelLSI
Max. Net Power(kw)56
Refrigeratorlowest refrigerating temperature—10℃
Fuel Consumption With The Regrigerator Closed(L/100km)6.2
Transmission5MT
Refrigerating unit specifications:
Item LQG5020XLCBQY
ModelYX-260S
lowest refrigerating temperature-10℃ (adjustable)
Refrigerating output(W)1500W(-10℃)
Driving modeDriven by engine
Voltage DC(V)12V
RefrigerantR404a
Reefer temperature adjustingElectronic digit display
Safety deviceHigh-low voltage switch safety protection
Defrosting modeManual/automatic defrosting

Production line:
Key components:
Detail:
Our Services
1.WARRANTY
we will provide one year warranty for our truck main parts, such as Engine, Transmission, Axle and Steering system.
2. TECHNICAL SUPPORT
Our rich-experience technical teams are standing by all the time for our vehicle products.
