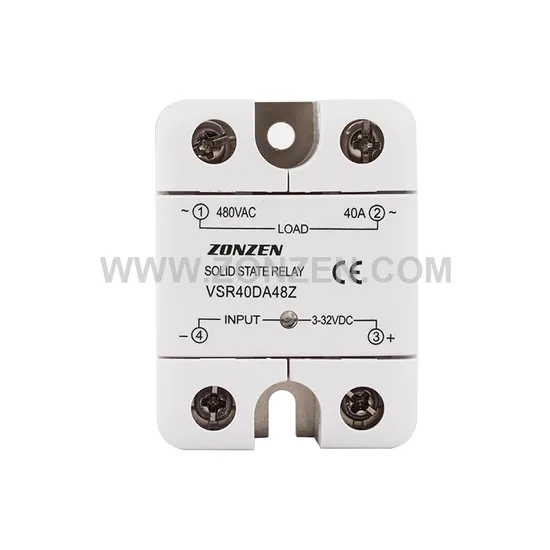

Single Phase 1pH DC to AC Da SSR DC/AC Solid State Relay
| US$4.10-12.90 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
VSR25DA28Z
Phase
Single Phase
Electricity Type
DC Control AC, AC Control AC
Number of Pole
1
Load
Medium Power Relay
Protective Characteristics
Sealed Relay
Action Principle
No & Nc
Size
Miniature
Type
Non-Contact Switching Devices
Certificate
CE, CCC, ISO9001
Base Material
Pure Copper
Indicator
LED Status
Switching Type
Zero Cross or Random Turn on
Removable Covers
Integrated IP20 Touch Safe
Housing Material
PBT+30%GF
Control Votage
3~32VDC, 90~280VAC
Load Current
15A, 25A, 40A, 60A, 80A, 100A, 120A
Transport Package
Exporting Packing Cartons
Specification
59.5*44.5*29 mm
Trademark
ZONZEN
Origin
Zhejiang, China
HS Code
8536490090
Production Capacity
30000 PCS/Month
Packaging & Delivery
Package Size
6.00cm * 5.00cm * 3.50cm
Package Gross Weight
0.200kg
Product Description
Product Description Features
1. Rating of 15A, 25A, 40A, 60A, 80A, 100A and 120A
2. Output voltage of 24~280VA, 24~480VAC and 48~660VAC
3. Control voltage of 3~32VDC and 90~280VAC
4. Zero crossing or Random-on Switching
5. Integrated IP20 touch-safe removable covers
6. Dielectric Strength 4000VACrms
7. LED input status indicator
| Cortrol Voltage | Output Voltage | Rated operational current | ||||||
| 15Amps | 25Amps | 40Amps | 60Amps | 80Amps | 100Amps | 120Amps | ||
| 3-32VDC | 280VAC"Z" | VSR15DA28Z | VSR25DA28Z | VSR40DA28Z | VSR60DA28Z | VSR80DA28Z | VSR100DA28Z | VSR120DA28Z |
| 3-32VDC | 280VAC"R" | VSR15DA28R | VSR25DA28R | VSR40DA28R | VSR60DA28R | VSR80DA28R | VSR100DA28R | VSR120DA28R |
| 90-280VAC | 280VAC"Z" | VSR15AA28Z | VSR25AA28Z | VSR40AA28Z | VSR60AA28Z | VSR80AA28Z | VSR100AA28Z | VSR120AA28Z |
| 90-280VAC | 280VAC"R" | VSR15AA28R | VSR25AA28R | VSR40AA28R | VSR60AA28R | VSR80AA28R | VSR100AA28R | VSR120AA28R |
| 3-32VDC | 480VAC"Z" | VSR15DA48Z | VSR25DA48Z | VSR40DA48Z | VSR60DA48Z | VSR80DA48Z | VSR100DA48Z | VSR120DA48Z |
| 3-32VDC | 480VAC"R" | VSR15DA48R | VSR25DA48R | VSR40DA48R | VSR60DA48R | VSR80DA48R | VSR100DA48R | VSR120DA48R |
| 90-280VAC | 480VAC"Z" | VSR15AA48Z | VSR25AA48Z | VSR4OAA48Z | VSR60AA48Z | VSR80AA48Z | VSR100AA48Z | VSR120AA48Z |
| 90-280VAC | 480VAC"R" | VSR15AA48R | VSR25AA48R | VSR40AA48R | VSR60AA48R | VSR80AA48R | VSR100AA48R | VSR120AA48R |
| 3-32VDC | 660VAC"Z" | VSR15DA66Z | VSR25DA66Z | VSR40DA66Z | VSR60DA66Z | VSR80DA66Z | VSR100DA66Z | VSR120DA66Z |
| 3-32VDC | 660VAC"R" | VSR15DA66R | VSR25DA66R | VSR40DA66R | VSR60DA66R | VSR80DA66R | VSR100DA66R | VSR120DA66R |
| 90-280VAC | 660VAC"Z" | VSR15AA66Z | VSR25AA66Z | VSR40AA66Z | VSR60AA66Z | VSR80AA66Z | VSR100AA66Z | VSR120AA66Z |
| 90-280VAC | 660VAC"R" | VSR15AA66R | VSR25AA66R | VSR40AA66R | VSR60AA66R | VSR80AA66R | VSR100AA66R | VSR120AA66R |
Input specifications
| Description | Specification Limits | |
| Control Voltage Range | 3-32VDC | 90-280VAC |
| Maximum Reverse Voltage | -6VDC | / |
| Minimum Turn-On Voltage | 3VDC | 90VAC |
| Must Turn-Off Voltage | 1V | 10VAC |
| Minimum Input Current [for on-state | 10mA | 6.5mA |
| Maximum Input Current [mA] | 20mA | 18mA |
| Maximum Turn-On Time [msec] | 1/2 Cycle | 1/2 Cycle |
| Maximum Turn-Off Time [msec] | 1/2 Cycle | 1/2 Cycle |
Output specifications
| Description | Units | Specification Limits | ||||||
| Model No.:VSR | Amp | 25 | 40 | 60 | 80 | 100 | 120 | |
| Load Current Range | Arms | 0.05-15 | 0.05-25 | 0.05-40 | 0.1-60 | 0.1-80 | 0.1-100 | 0.1-125 |
| Surge Current 10mSec[Max.] | Arms | 150 | 250 | 400 | 600 | 800 | 1000 | 1200 |
| Load Voltage Range [280V] | Vrms | 24-280 | ||||||
| Transient Overvoltage [280V] | Vpk | 800 | ||||||
| Load Voltage Range [480V] | Vrms | 24-480 | ||||||
| Transient Overvoltage [480V] | Vpk | 1200 | ||||||
| Load Voltage Range [660V] | Vrms | 48-660 | ||||||
| Transient Overvoltage [660V] | Vpk | 1600 | ||||||
| Operating Frequency Range | Hz | 47~63 | ||||||
| Off State dv/dt [min. | V/μs | 200 | 200 | 200 | 500 | 500 | 500 | 500 |
| Off State Leakage Current [Max.] | mA | ≤8 | ||||||
| On State Voltage Drop [Max.] | Vrms | 1.5 | 1.5 | 1.5 | 1.6 | 1.6 | 1.8 | 1.8 |
| Turn On Time [Max.]"Zero-crossing" | Cycle | 1/2 | ||||||
| Turn On Time [Max.]"Random-on" | mSec | 1 | ||||||
| Turn-off Time [DC input] | Cycle | 1/2 | ||||||
| Turn-off Time [AC input] | mSec | 10 | ||||||
| Thermal Resistance,[Rthjc] | °C/W | 2.5 | 2.5 | 1.3 | 0.65 | 0.5 | 0.3 | 0.3 |
General Specifications [Ta=25°C]
| Description | 15A | 25A | 40A | 60A | 80A | 100A | 120A |
| Dielectric Strength,Input to Output [50/60 Hz] | 4000 Vrms | ||||||
| Dielectric Strength,Input/Output to Base [50/60 Hz] | 2500 Vrms | ||||||
| Minimum Insulation Resistance [@500 VDC] | 10°Ω | ||||||
| Maximum Capacitance,Input/Output | 0.8 pF | ||||||
| Ambient Operating Temperature Range | -30 to 80ºC | ||||||
| Ambient Storage Temperature Range | -30 to 100 ºC | ||||||
| nput Terminal Screw Torque Range [in-lb/Nm] | 11-18 /1.2-2.0 | ||||||
| Load Terminal Screw Torque Range [in-lb/Nm] | 18-26/2-3 | ||||||
| SSR Mounting Screw Torque Range [in-lb/Nm] | 11-16/1.2-1.8 | ||||||
| Humidity per IEC60068-2-78 | 95 % | ||||||
| LED Input Status Indicator | Red | ||||||
| Housing Material | PBT+30%GF | ||||||
| Baseplate Material | Pure copper | ||||||
| Weight | 145g | ||||||
