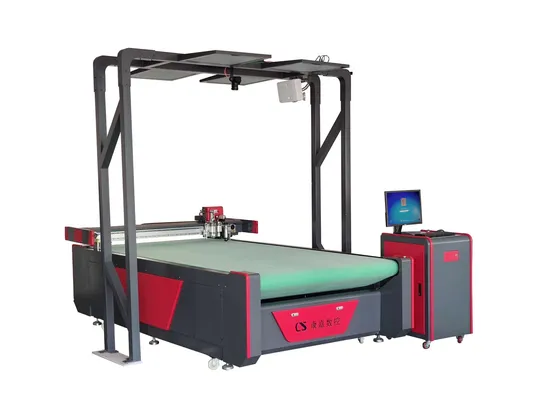

Automatic Feeding Digital Oscillating Knife Cutter Fabric Cutting Machine Textile Cloth Garment Apparel Cutting Machine with CCD
| US$12,500.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Control
Automatic
Application
Metal, Paper, Stone, Plastic, Leather, Fabric
Power Source
Electric
Layout
Horizontal
Effective Cutting Area
2500mm * 1600mm
Overall Dimension
3.42m * 2.28m *1.4m
Supported Formats
Plt, Dxf, Jdp
Cutting Accuracy
0.1mm
Transport Package
The Wooden Case
Specification
KJPD-ZD-1825
Trademark
Kangjia
Origin
China Jinan
HS Code
8451500000
Production Capacity
500PCS
Product Description
| Model | KJPD-ZD -1825(can be customized) |
| Fan power | 9 kw |
| Voltage | 110V/220V/380V±10%,50HZ 60HZ |
| Working characteristic | Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously |
| Cutting speed | max. 1400mm /s |
| Cutting thickness | 0.1-10mm |
| Effective cutting area | 2500mm * 1600mm |
| Cutting accuracy | ±0.1mm |
| Overall dimension | 3.42m * 2.28m *1.4m |
| Cutting materials | Flexible materials |
| Cutting tool | Oscillating knfie |
| Location mode | Infrared laser |
| Material fixed mode | Vac-sorb |
| Transmission interface | Network transmission |
| Compatible software | Kangjia intelligent intergrated software |
| Supported formats | PLT, DXF, JDP |
| Control system | PC |
| Driving mode | Belt drive |
| Servo motor & drive | Panasonic |
| Guide rail | Brand :Yintai |
| Body structure | Body welding |
| Suction casing | Aluminum case; The platform is made of 5mm solid aviation aluminum, and the built-in support structure is made of 3mm square steel pipe, which ensures that the platform will not be deformed for a long time. |
| Certification | CE/SGS,ISO9001/ISO14001/ISO18001 |
| Safety device | Mechanical anti-collision device + infrared ray |
