Automatic Screen Printing Machine for Battery

Automatic Screen Printing Machine for Battery

US$32,500.00-36,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
BETTER
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Two-Colour Printing Press
Application
Packaging Printing
Print Interface
Customized
System Supported
Customized
Maximum Printing Area
160mmx200mm
Steel Plate Size
200mm*250mm
Printing Color
Two Colors
Printing Precision
+/- 0.05mm
Control System
Panasonic
HMI
Weinview
Transport Package
Over Sea Export Standard
Trademark
Better
Origin
China
HS Code
3507909000

Product Description

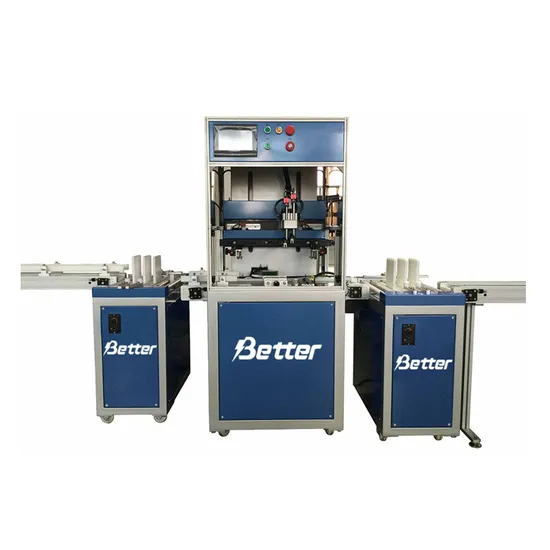

Automatic Screen Printing Machine
The screen printing machine adopts PLC control and human machine interface digital operation. This machine adopts mechanical transmission, with accurate positioning and fast speed. It provides a variety of function settings, to achieve the operation of data, standardization, and humanization of the perfect requirements. Innovative structure design, with servo motor guide rail guiding system, running fast, stable and smooth, automatic turnover, automatic printing, Led cold light source instant curing, automatic, over-turn 90°. Accurate positioning, energy saving, automatic feeding, labor saving, ensure printing quality.
Main Parameter
NO Item Parameter
1 Maximum printing area 160mmx200mm
2 Steel plate size 200mm*250mm
3 Printing color Two colors
4 Printing precision ±0.05mm
5 Control system Panasonic
6 HMI WEINVIEW
7 Positioning system Mechanical positioning
8 Conveyor drive Servo motor + mechanical drive
9 Working cycle About 6S
10 Working pressure (Mpa) 0.4~0.6Mpa
11 Machine structure combination
12 Production capacity About 500pcs/hr
13 Power Supply 220V 50/60Hz
14 Positioning induction Optical fiber
15 Machine dimension 3000mm*1750mm*1700mm

Structure Configuration
Structure Item Accessory Name Configuration Description
Basic structure Frame Q235A+ high quality square tube Frame and parts
Sealing plate high quality cold-rolled sheet
Other parts cast aluminum and alloy aluminum
Back and forth system Back and forth drive Rodless cylinder SMC
Guiding Guide rail HIWIN
Drive system Drive Servo motor Panasonic
Guiding Mechanical drive combination
Control system Control circuit PLC+HMI Panasonic
Pneumatic control solenoid valve SMC

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
