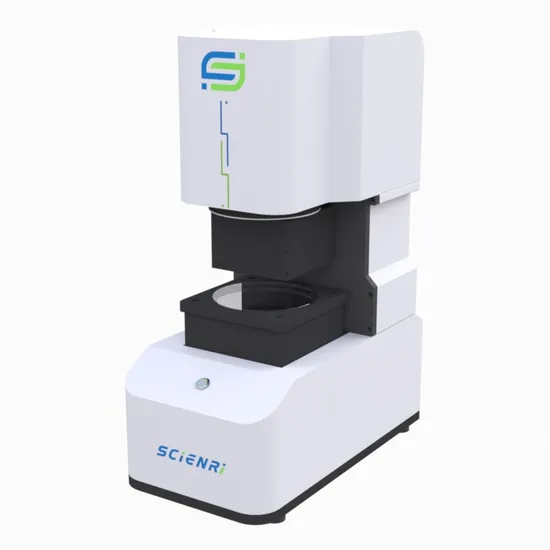

Automatic Video Measuring Machine Optical Measuring Instruments
| US$3,200.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Material
Aluminum Alloy
Measurement Object
Squareness
Range
0～150mm
Resolution
0.002mm
Precision
0.001mm
Measure Method
Automatic
Precision Measuring Device
Not Precision Measuring Device
Customized
Customized
Measurement Range (mm)
Measurement Range (mm)
Overall Dimension
330*600*850
Measurement Accuracy (mm)
2.5+L/50um
Lifting Stroke (mm)
45mm
Transport Package
Wooden
Trademark
Sunari
Origin
China
HS Code
9031809090
Product Description
High precision, large field of view, one click flash testing;
Auto focus, automatic edge searching, and automatic judgment of defective products;
When extracting edges with burrs or defects, automatically treat them as abnormal points for removal
Accurate flash testing, capable of identifying multiple workpieces and conducting inspections, with a wide range of applications
Suitable for various industries, electronic products, hardware accessories, mobile phone accessories, etc;
Fast measurement and simple software operation can achieve sta
| model | 3020 | ||
| Actual measurement size | 120*80*600 | ||
| certainty of measurement | (3+L/200)μm | ||
| Overall dimensions (mm) | 660*560*960 | ||
| The weight of the machine | 180kg | ||
basic machine | Base, column: Jinan granite precision 00, planness 3 μ m, physical stability | ||
| Guide rail: FYV type high balance roller cross guide rail | |||
| Grating ruler: Xintian precision closed grating ruler with a resolution of 1 micron | |||
| Z-axis drive mode: manual focus | |||
optical system | CCD | Hikvision Gigabit network color industrial digital camera | |
| camera lens | Can continuously zoom HD lens, optical magnification 0.7-4.5 | ||
| good appearance | The United States imported lamp bead LED ring cold light source, stable light source, high life | ||
| rim light | The United States imported lamp bead LED round cold light source, stable light source, high life | ||
| Bearing accessories | The Japanese NSK high-speed bearing | The Japanese NSK high-speed bearing | |
| Limit switch parts | Japan Omron point limit switch | Japan Omron point limit switch | |
| clutch | Japanese Mismi coupling | Japanese Mismi coupling | |
software system | Multi-language zonson intelligent automatic measurement system | ||
| The 0. 1-micron resolution triaxial DC300 resolution system | |||
| High-definition SDK2000 video acquisition system | |||
appendix | maintenance instruction | ||
| Factory inspection report | |||
| A 1-micron resolution calibration sheet | |||
| Each applicable connecting line | |||
