4HP 8PCS/10PCS Impeller Paddle Wheel Aerator
Basic Info.
Model NO.
GY FM008
Working Method
Friction Type
Power Source
Diesel Engine
Harvesting Machinery Type
No
Fishing Method
for The Gearbox
Aquatic Products Processing Machinery
Material Handling Machinery
Fishing Gear Winch Type
Fishing Machinery
Fishing Auxiliary Machinery Type
No
Certification
CE, QS, SGS
Condition
New
Finished processing machinery
Plastic Machines and Steel Machines
Warranty
18 M
Gears Teeth
13:40,11/50,11/52,13/48t,or 11/49t
Gears Material
20crmnti
Power
3HP/4HP/5HP.10HP /16HP for Diesel
Transport Package
Standard Packing
Specification
Base on required
Trademark
Geyin
Origin
China
Production Capacity
5000/Month
Packaging & Delivery
Package Size
170.00cm * 60.00cm * 50.00cm
Package Gross Weight
100.000kg

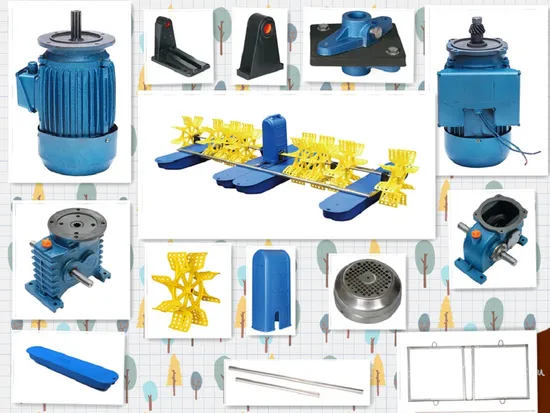

Product Description
| Name | Size / weight | Image | Quantity set | Material | remarks |
| Diesel engine and gearbox | 270mm•290mm•490mm/216KG | 1pc | Cast iron, | Diesel engine customer support or we supply | |
| Split connecting rod | 5600mm/8KG | | 2pcs | 304# SS | |
| Pipe Impeller shaft | 5500mm/21.5KG | | 1pc | 304# SS | |
| Impeller | 660mm•660mm•200mm/2.1KG | 12pcs | nylon | ||
| Float | 1650mm•260mm•200/5.2KG | 6pcs | PE | ||
| rubber connector | 130mm130mm•45mm/5.5KG | 2pcs | Cast iron | ||
| A universal coupling | 200*90*90/2.7KG | 2pcs | Cast iron | ||
| Bearing bracket | 260mm•135mm•120mm/0.5KG | 5pcs | nylon | ||
| Transmission shaft | 6000mm/10KG | | 1pc | Galvanized pipe | |
| Bearing bracket | 230mm•115mm•170mm/5.6KG | 1pc | Cast iron | ||
| Bracket | 320mm•280mm•50mm/1.5KG | 1pc | 304# SS | ||
| Bolt and nut | 4KG | 304# SS |
| Name | Size / weight | Image | quantity set | Material | remarks |
| Diesel engine and gearbox | 270mm•290mm•490mm/216KG | 1pc | Cast iron, | Diesel engine customer support | |
| Split connecting rod | 5600mm/8KG | | 2pcs | 304# SS | |
| Pipe Impeller shaft | 5500mm/21.5KG | | 1pc | 304# SS | |
| Impeller | 660mm•660mm•200mm/2.1KG | 12pcs | nylon | ||
| Float | 1650mm•260mm•200/5.2KG | 6pcs | PE | ||
| rubber connector | 130mm130mm•45mm/5.5KG | 2pcs | Cast iron | ||
| A universal coupling | 200*90*90/2.7KG | 2pcs | Cast iron | ||
| Bearing bracket | 260mm•135mm•120mm/0.5KG | 5pcs | nylon | ||
| Transmission shaft | 6000mm/10KG | | 1pc | Galvanized pipe | |
| Bearing bracket | 230mm•115mm•170mm/5.6KG | 1pc | Cast iron | ||
| Bracket | 320mm•280mm•50mm/1.5KG | 1pc | 304# SS | ||
| Bolt and nut | 4KG | 304# SS |
