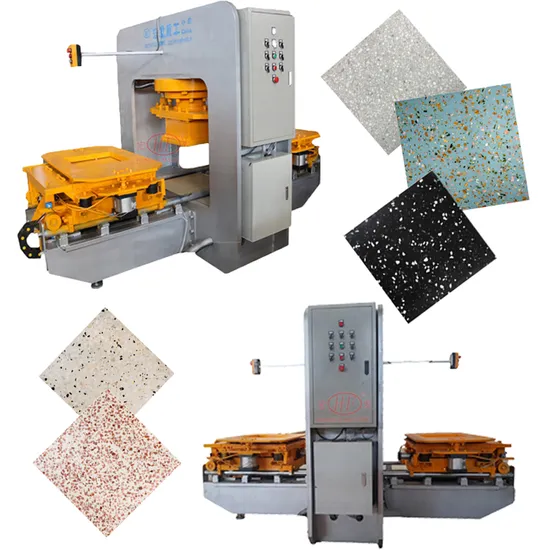

Anti-Slip Park Sidewalk Square Tile Machinery Cement Color Pavement Tile Machine Airport Hall Floor Tile Production Machine

Product Description

Anti-slip Park Sidewalk Square Tile Machinery Cement Color Pavement Tile Machine Airport Hall Floor Tile Production Machine
Terrazzo Tile is made by gravel, glass, quartz stone, marble, cement and others, By the steps of mixing , pressing, grinding, and polishing. The terrazzo tile made of cement adhesive is called inorganic grinding stone, and the terrazzo tile made of epoxy adhesive added called epoxy grinding stone or organic grinding stone, according to the construction process, it has on site pouring terrazzo tile and prefabricated terrazzo tile.
Product Description
Tile Operational Process
step 1: sourcing raw materials to make terrazzo tile in local market, generally stone grains, pigment, cement, water, and others.
step 2: mixing and feeding, which is to mix the raw material, in this process, you can mixing by manuel or add an automatic mixing system. After full comprehensive mixing, the raw materials are ready to feed into molds.
step 3: pressure & forming the tile, when the mold is finished feeding, then we can press the button control to start pressure, with the tile machine its hydrualic pressure system, the finishe tile wil be strong enough with hign density. The semi finished terrazzo tile stacked up and pushed into a curing room with temperature between 25 degree to 30 degree to achieve stablity and initial hardening.
step 4: if need the surface to be smooth, the tile will be in the process of polishing to polish the tile with smoothly surface and make it more tiny and more beautiful.
step 5: the finished tile can be packed and ship to customer and directly use for construction works.
Terrazzo tile production line advantages
1 The terrazzo tile pressure machine is special designed by Hongfa Machinery for manual operation,low investment,
2 Two molds at both sides, can produce terrazzo tiles at the same time, high efficiency.
3 Hydraulic pressure guarantees the high density of the terrazzo tile, gurrantee the terrazzo tile quality.
4 The tile machine is easy operation,low maintenance rate, it's long term business with stable return.
5 This tile machine can produce floor tile,pave brick,paving tile,garden tile, with customized pattern, to meet different require in the market.
6 Low labor cost, the machine can install with Pan mixers, only three or four workers can run the terrazzo tile molding machine.
3) Tile size range: 25*25mm/30*30mm/40*40mm/50*50mm/60*60mm
4) Tile Thickness: from 25mm to 50mm
5) Machine overall dimension: 3000*1800*1950mm
6) Weight: 5800kg
Machine Technical Parameters:

Dimension	3000*1800*1950mm
Opening Size of the main machine	1200mm*880mm
Tile size range	1. 300*300*30(mm)/2pcs a mold 2. 400*400*30mm//1pcs a mold 3. 600*600*30mm/1pcs a mold
Height of the working table	800mm
Moving distance of press	0-80mm
Cycle time	40~60s/mould
Hydraulic rated pressure	18Mpa
Total Power	18.5kw
Total Weight	5.6 Ton

Notes: We can desigh the tile machine overall dimesion and different mould with different working method to match your finished production size, we are flexible to your requires. Please send us the tiles size with thickness in detail, we will check and make a proposal to meet your demand.
Raw material to make tile
The raw materials for making terrazzo tile are cement, sand, stone powder, stone grains and crushed stone. After high pressure molding and natural protection, the polishing process can be comparable to natural marble.
Polishing sample the tile
After high pressure molding and natural protection, the polishing process can be comparable to natural marble. fter high pressure molding and natural protection, the polishing process can be comparable to natural marble.After high pressure molding and natural protection, the polishing process can be comparable to natural marble.

Machine main technical specifications
The terrazzo tile machine combines the essence of similar products at home and abroad and adopts mechanical, electrical, hydraulic and pneumatic controls. It has human-machine interface control, complete self-diagnosis and fault functions, top-level device configuration, compact structure, and stable and reliable performance. The terrazzo floor tile machine is used to make cement floor tiles. It is made of cement and natural materials of various colors and is mixed and molded with high strength. After surface treatment, it can be compared with natural stone. It is suitable for municipal projects, gardens, schools, factories and mines, building floor decoration, and indoor and outdoor decoration of villas and residences.
1 Adopts full-hydraulic press and pneumatic to shape, fully automatic cycle, interlocking of various action programs, stable performance, simple operation, easy to learn. The terrazzo tile production machine production line has a shift output of about 3,000 pieces to 4,800 pieces, and the entire production line can be operate by 2-3 people.
2 The Terrazzo Floor Tile Machine can produce various types of terrazzo floor tiles, artificial stones, etc, in 300x300mm, 400x400mm, 500x500mm, 600x600mm and others dimensions by replacing the mold.
Finished Terrazzo Tile Roof Tile
After Sales Service
Technical support
We offer the optional professional solution, process flow design and production equipment according to each customer's demand and budget.
Most welcome every customer to visit our factory to see how the machine working and running before placing the order. We will send you invitation letter to apply visa and pick you up at the airport.


1 year gurrantee with 2 year spare parts for free 1 year gurantee for the machine and offer you 2 years spare parts for free, we hope long term co-operation, quality is our prime. Meanwhile, we will help you to planing the factory, before shipment, we will provide a full instruction manual for the whole system, also provide the technical guidance for the installation and use of the unit, including installation advice and eletrical connection.
Company Profile
Hongfa Machinery is your best tile machine supplier. Brand and qualityWe are a construction and building materials equipment manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,concrete block making machine,concrete tile making machine and concrete pipe making machine etc. with more than 30 years experience and being the biggest manufacturer in China at present. All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.Hongfa Machinery's Hono 1.One of Top Ten Influential Brands in China Brick &Tile Industry2.China National Enterprise Abiding By Contract & Keeping Good Faith3.Quality and Credibility of the Dual-protection Demonstration Unit4.High and New Technology Enterprise5.Famous Trademark of China6.Star Enterprise with China Patent7.AAA Grade Credit Enterprise8.Consumer Satisfaction Unit9.One of Top 100 building Material Industry Brands of China10.One of Top Ten Good Faith Units11.Advanced Exporter in Guangxi Province12.Advance Quality Management Unit.
Packaging & Shipping
Packing: Well-naked packing or stretch film packing to protect the machine during shipment. At the same time, the customer's special packing requirements are acceptable as we are a flexible customization manufacturer.
Delivery: 35 days after receiving deposit.
Shipment: please send us the desitination port for checking the freight charge and shipping time.

FAQ
Set up a new terrazzo tile plant you may want to know:
-How much the budget do I need for a complete terrazzo tile production line? If you want start new business of cement color roof tile & floor terrazzo tiles the main cost is mainly composed terrazzo tiles production machines, factory site, labor cost and raw materials cost.-What is the main material for making terrazzo tile products? The main materials are cement, sand, crushed stone, powder stone, color powder, granite stone.-How can I get a quotation? Please kindly tell us what types of tile you want to make, and what is the exact size you require. We will estimate the best suitable terrazzo tile production line for you according to your detailed requirements.-What can you offer for my terrazzo tile plant? We are dedicated to the quality manufacturing of cement color roof tile& terrazzo tiles production line, providing not only complete sets of terrazzo tiles machines but also complementary services. Offer you a complete terrazzo tiles production solution:1. Analyzing: Plant size, budget, automatic degree, local condition....analyzing all of your requirements.2. We offer technical support until the workers know how to operate.3. The operating instruction will go to the customers with the equipment. Technology data and relative files for Terrazzo Tiles Plant!4.We provide lifelong guidance and visiting clients in regular times.5.Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.

Click below "chat" otr "send inquiry" , our sales team will send you the machine working video and show you how it's runing in detail, show you the factory and workshop. Let's keep active and accomplish your project parts quickly!

Hongfa has developed, produced and sold Terrazzo Tile Making Machine, Automatic Block Brick Machine, autoclaved aerated blocks (AAC) and autoclaved aerated panels (ALC), All-om-one roof tile&floor tile machine, Lightweight Wall Panel production line, Artificail Quartz Slab Production Line, Roof Tile Extruder Machine, Vertical Type Pipe Machine, Automatic Horizontal Type Pipe Machine equipment since 2007, with an annual production capacity of 50-500 thousand m³,Up to now,more than 100 production lines have been sold at home and abroad, ranking among the top manufacturers for domestic production and sales of aerated block equipments.
