Welding Fiber Laser 2 Kw Welding Machine for Steel Welding

Product Description

Product Description

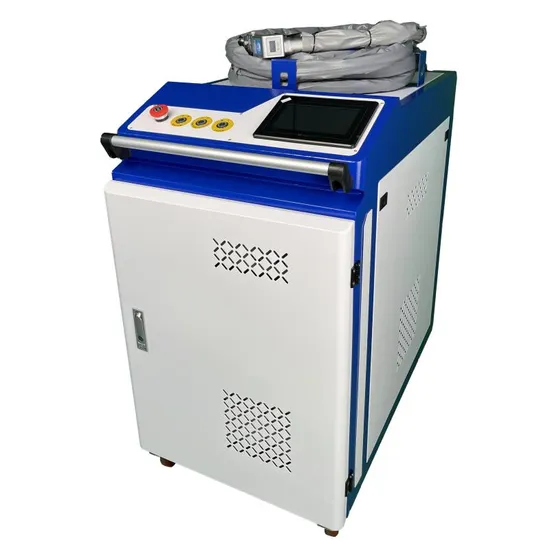

1000W 1500W 2000W 3000W Mini Handheld 3 in 1 Fiber Laser Welding Cleaning Cutting Machine

Laser SourceHigh photoelectric conversion, better and more stable laser beam. Raycus / Max multiple choice
Different brands, different laser power are available.
The Raycus laser resourcethe top brand in China.It's high quality and long life time around 100000 hours. We have long cooperated with them.
At the same time,it introduces the optimized
second generatio fiber transmission system to ensure more stable and precise welding effect in plate welding.
Water Chiller:
Brand:Hanli or S&A Good dustproof and anti-condensation effect. Intelligent control self-adaptive hot and cold dual temperature adjustment. Separate cooling of cleaning head and laser source. Stable laser output,fast and energysaving.
Smart Control Panel Language: English/Russian/Korean/Japanese/Turkish(Customized) The full-screen operation interface makes the working status clear at a glance. The operation panel is simple to set and easy to learn. Complicated training is not required.
Handheld Welding Gun: Pure copper welding nozzle,integrated gas protection system. The hand-held welding head is light and flexible,which can realize welding of any part of the workpiece. You are not easy to fatigue after a long working time.

Auto Wire Feeder
Auto Wire Fedder Included When the welding gap is big or you want a stronger welding strength,wire feeder is needed. You can turn off the feeder function when you do not need it
Free Accessories Including:
Product Parameters

Model	RL-500	RL-1000	RL-1500	RL-2000
Maximum laser power	500	1000	1500	2000
Laser frequency	50-5000HZ	50-5000HZ	50-5000HZ	50-5000HZ
Power adjustment range	10-100%	10-100%	10-100%	10-100%
Power instability	<3%	<3%	<3%	<3%
Welding penetration (stainless steel)	1.2mm	2.0mm	2.5mm	3.0mm
Welding penetration (carbon steel)	0.8mm	1.5mm	2.5mm	3.0mm
Welding penetration (aluminum steel)	1mm	2mm	3mm	4mm
Swing welding spot	Solder spot 2-4mm	Solder spot 2-4mm	Solder spot 2-4mm	Solder spot 2-4mm
Input voltage	220V/50HZ	220V/50HZ	380V/50HZ	380V/50HZ
Total power	≤3KW	≤3KW	≤3KW	≤3KW
Automatic wire feeding	Optional	Optional	Optional	Optional

3 IN 1
The Differences between Traditional Welding and Laser Welder

	Traditional Welding Methods	Laser Welder
Speed	Average	Up to 4X Faster than TIG
Quality	Depends on the user experience	Consistent high-quality results
Learning Curve	Steep	Quick and easy
Materials Flexibility	Limited with consumables changes	Wide range with no set up
Distortion and Deformation	High	Very low
Heat Affected Zone	Large	Small
Wobble Welding	No	Yes-up to 5mm additional weld width
Pre and Post Weld Cleaning	No	Yes-up to 15mm cleaning path

Cutting Samples

Exhibition&Certifications

Company Profile

Founded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad. After Sales Service

1. 1 year Guarantee for the whole machine. 2. 12 months Guarantee and free spare parts supply during this period. 3. 24 hours on line service 4. 3-7 days lead time 5. We will provide the Instruction Book, Operational manual and Training Video 6. Provide technical support for the whole lifetime on line 7. TT/Ali Trade Assurance payment
Packaging & Shipping
Packaging Details
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Port:
Qingdao port/ Shanghai port / Tianjin port
FAQ

1.How to choose the right to for me? A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training on line by free
