1000-20000 Ton Upcasting Copper Rod Manufacturing Equipment Oxygen-Free Copper Rod Upwards Continuous Casting Machine

Product Description

Product Description
This upward continuous casting production line is specially used for producing high-conductivity oxygen-free copper rods or oxygen-free copper tubes. When the size of the crystallizer and the mechanical clamping wheel is changed, flat products with other cross-section specifications can also be produced.

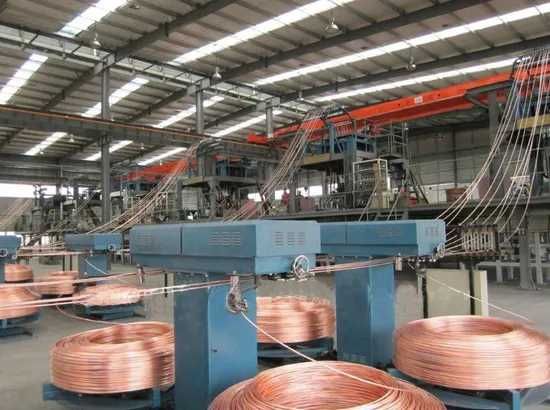

The continuous casting production line is composed of a large three combined body furnace, a continuous casting machine, a guide frame, a speed tracking device, double-rod wire coiling machines, water cooling system, temperature measuring system, copper liquid level tracking system and inductors, electrical systems, etc.

Production process

raw materials (electrolytic copper) are fed into melting furnace in sequence and are melted to be molten copper→ molten copper goes to transition vessel → molten copper goes to holding furnace → molten copper goes to crystallizer and is crystallized to be copper rod → copper rod goes to traction device and is in upward traction→ copper rod goes to output frame → copper rod goes to wire separating frame (avoid copper rod twining each other→) copper rod goes to the automatic tracking device (control the wire coiling speed)→ copper rod goes to the coiling machine and is coiled in circles → goes to the next processing procedure.

Model	No. Of head rods	Diameter of copper rod	Capacity (T/Year)
CTSY-2000	4	Φ8-Φ30mm	2000
CTSY-4000	6	Φ8-Φ30mm	4000
CTSY-5000	10	Φ8-Φ30mm	5000
CTSY-6000	12	Φ8-Φ30mm	6000
CTSY-8000	16	Φ8-Φ30mm	8000
CTSY-12000	24	Φ8-Φ30mm	12000
CTSY-15000	32	Φ8-Φ30mm	15000

Product Parameters

1. Melting rate	≥1000KG/H ,( Adopt 2×500KG Melting furnace body)
2. Production capacity	>=400-500 Ton/month (castingФ8 copper rod as standard)
3. Melting furnace power	<=240KW
4. Holding furnace power	<=120KW(Adopt one 500kg holding furnace)
5.Furnace type and structure	Power frequency cored induction furnace, Large triplet composite furnace
6. Melting hook structure	Exclusive
7. Highest melting temperature	1300ºC
8. Normal casting temperature	1100ºC- 1250ºC
9. Casted rod number	12 heads
10.Casted rod specifications	Ф8mm
11.Driving type	Two driving and traction
12. Casting speed	0-2500mm/min (casting and traction speed), 3-7mm (pitch) adjustable
13.Liquid level tracking precision	±1mm
14 Wire coiling method	1.Double-rod wire coiling, total of 8 double-rod wire coiling machines 2. Circled wire coiling: inner diameter Ø 1000mm, outer diameter Ø 1800mm) 3 .Weight of circled copper rod reel : > 2-3 tons 4. Synchronous method of wire coiling: synchronous tracking, AC frequency conversion variable speed. 5 .Method of circling: curvature automatically controlled by PLC

Our Advantages
The oxygen content of copper rod is below 10ppm. The machine equipments have complete functions and reasonable technical parameters, which can realize automatic control. The equipments have automatic temperature measurement and temperature control functions; Melting furnace and holding furnace, when the copper liquid in the furnace reaches the set temperature, there is display and light and sound signalling indicators, and the casting temperature can be controlled in a closed loop. The prodcution line has melting furnace, holding furnace cooling water temperature, pressure monitoring and alarm function. The coil and the water jacket device are equipped with cooling water inlet and backwater thermometer, pressure gauge, valve, etc. Melting furnace and holding furnace are equipped with digital display of temperature, protection and alarm functions such as over load, over voltage, grounding, water over temperature, water under voltage, etc.The electric control of melting and holding furnace is completely independent from that of the whole unit. The crystallizer size can be adjusted. Crystallizer cooling water distribution device is equipped with cooling water inlet and backwater thermometer, pressure gauge, valve, etc. The system is made of stainless steel (304). The control program of the traction machine can be selected according to the process requirements, and the slip between the casting billet and the traction device is eliminated during traction. Synchronous transmission of casting strip is guaranteed by AC frequency conversion servo motor. All the data during the operation of the equipment can be displayed on the monitor of the operating platform in the form of a picture (more than 10 inches), through the monitoring components and control components arranged throughout the equipments. Scope of Supply

No.	Equipment name		Quality	Remark
1	Large triplet combined furnace	Triplet combined furnace	whole set
		Inductor	whole set	Iron core, coil, water cooling jacket
		Supportive bracket of furnace body	whole set
		Furnace cover	whole set
		Material for furnace building	1 set
		Melting hook	whole set	Holding furnace and melting furnace
		Electrical control cabinet for furnace	whole set
		Copper plate feeding machine	1 set
		Tools for furnace building	1 set
2	Continuous caster	Continuous caster frame	whole set
		AC servo motor and speed reducer	1 sets
		Guiding roller	1 set
		Driving system for upward traction	1 set
		Pneumatic clamping and rapid hoisting device	whole set	Crystallizer
		Water cooling cycling system of crystallizer	whole set
		Hoisting device	whole set
		Liquid level monitoring system	1 set
		Control and operation panel of continuous caster	whole set
3	Temperature measuring system	Inlet water distribution system	1 sets
		Crystallizer temperature detecting assembly	whole set
		Water cooling jacket coil temperature detecting assembly	whole set
		Thermocouple S indexing	1 set
		Holding furnace temperature detecting assembly	whole set
4	crystallizer	Casted rod crystallizer Ф8mm	12 pieces
		Quick connectors	24 set
		Rubber hose assembly	24 pieces
5	Wire coiling machine	Automatic wire coiling speed tracking device	1 set
		Machine body	6 sets
		Wire coiling trolley	12 sets
		Wire coiling reel	12 sets
		Wire coiling guide rail	12 set
