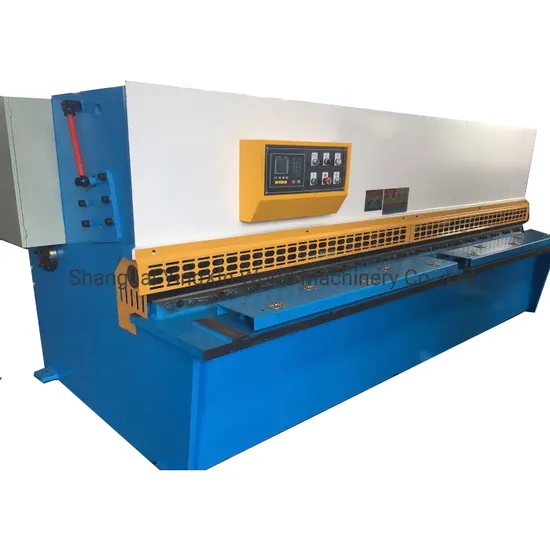

Nc Shearing Machine with Swing Type Blade Carrier
| US$10,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QC12Y
Certification
CE, ISO 9001:2000, ISO 9001:2008, EPA, CS, RoHS
Condition
New
Warranty
1 Year
Metal Shearing Machine
Swing Beam Type Shearing Machine
Motor Brand
Siemens
Hydraulic Pump
Sunny
Valve
Rexroth
Control System
Estun E21s Nc System
Color
Customized
Transport Package
in Container
Specification
cutting width to 6000mm
Trademark
WORLD
Origin
China
HS Code
84623990
Production Capacity
1000PCS/Year
Product Description
nc shearing machine with swing type blade carrierFeatures:
1) A fully welded steel construction with high strength and rigidity.
2) Front-controlled backgauge by power fast-adjustment & manual fine-adjustment with counter display.
3) Fast-adjusting device for blade clearance.
4) Reliable protection barrier.
5) With counter.
Details:
1-Strong steel welded c frame body, heat treatment and best producing by cnc machine center, high rigidity and precision.
2-Backguage is controlled by motor and ballscrew, the postion can be displayed on the screen of E21 NC system.
3-English control panel with counter, emergency stop button is equipped for safety.
Specifications:
| Items | unit | QC12Y-4x2500 | QC12Y-4x3200 | QC12Y-4x4000 |
| Max. cutting thickness | mm | 4 | 4 | 4 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 16 | 14 | 10 |
| Main motor | kW | 4 | 5.5 | 5.5 |
| Length | mm | 3040 | 3840 | 4800 |
| Width | mm | 1500 | 1500 | 1500 |
| Height | mm | 1500 | 1600 | 1700 |
| Items | unit | QC12Y-6x2500 | QC12Y-6x3200 | QC12Y-6x4000 |
| Max. cutting thickness | mm | 6 | 6 | 6 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 15 | 12 | 12 |
| Main motor | kW | 7.5 | 7.5 | 7.5 |
| Length | mm | 3040 | 3840 | 4800 |
| Width | mm | 1650 | 1650 | 1650 |
| Height | mm | 1700 | 1700 | 1700 |
| Items | unit | QC12Y-8x2500 | QC12Y-8x3200 | QC12Y-8x4000 |
| Max. cutting thickness | mm | 8 | 8 | 8 |
| Max. cutting width | mm | 2500 | 3200 | 4000 |
| Tensile strength of plate to be cut | N/mm2 | 450 | 450 | 450 |
| Cutting angle | deg | 1.5 | 1.5 | 1.5 |
| Travel distance of back gauge | mm | 20-600 | 20-600 | 20-600 |
| Throat depth | mm | 150 | 150 | 150 |
| Stroke speeds | spm | 14 | 12 | 10 |
| Main motor | kW | 7.5 | 7.5 | 11 |
| Length | mm | 3040 | 3860 | 4800 |
| Width | mm | 1700 | 1700 | 1700 |
| Height | mm | 1700 | 1700 | 1700 |
