China Gooda Wooden or Steel Box Metalworking Machinery Machining Center with ISO 9001

Product Description

GOODA CNC Gantry Machining Center
MODLE : GDGM-3015NC

Machine technical specification

Model:GDGM-3015NC		Unit	Specification
Process Range	X axis travel	mm	3000
	Y axis travel	mm	1700
	Z axis travel	mm	800
	Spindle nose to worktable surface	mm	200~1000
	Distance between two columns	mm	1500
Worktable	Table Size	mm	3200×1300
	MAX Loading weight	kg	6500
	T-Slot (Number/Width/Gap)	-	7×22×170
Spindle	Spindle Speed	rpm	9000
	Spindle Taper	-	BT50
	Spindle Motor	KW	15/18.5
Speed	Rapid Moving (X/Y/Z)	m/min	12/24/12
	Rapid Feed (X/Y/Z)	m/min	10/10/10
Tool Magazine	Tool Magazine Number	pcs	24
	Tool MAX Diameter/length/weight	-	Æ112mm/350mm/15kg
	Tool MAX Diameter (Full/Empty)	mm	112/200
	Tool selection method	-	any/sequence
	Time (tool-tool)	S	1.8
Machine Accuracy	Positioning (X/Y/Z)	mm	0.025/0.02/0.015
	Re-Positioning (X/Y/Z)	mm	0.012/0.009/0.008
Others	Air source	L/min	280
	Air pressure	Bar	6~8
	Total electrical capacity	KVA	55
	Water tank capacity	L	400
	Machine size	mm	8000×3900×4500
	Machine weight	kg	27500
System	FANUC SYSTEM OR Mitsubishi controller	-	Optional

The Features The machine adopts the gantry structure of moving table. The bed is fixed, the worktable moves in the X direction on the bed; the ram moves in the Z direction on the sliding seat; the sliding seat and the ram move in the Y direction on the gantry beam; the X and Y axes adopt heavy-duty linear rails, Z The shaft is a plastic hard rail. The main shaft assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance and convenient operation.

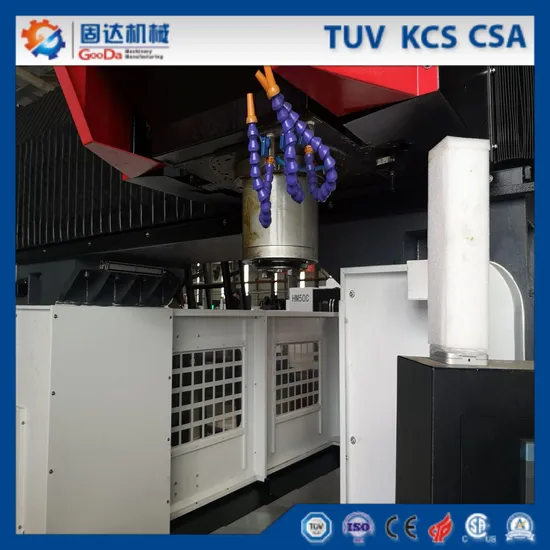

Spindle box: We use high-speed BT50 spindle unit with center blowing.
Tool Magazine: We use disc magazine with high quality and stable functionality. (Optional)
Transmission: The three-axis motor and high-precision ball screw adopt a direct drive method. The ball screw is pre-tensioned and installed to improve transmission rigidity and positioning accuracy. {Workshop}
Main products:CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
After years of unremitting efforts, the company has obtained dozens of patent technology and software coyright, and has successively passed the ISO 9001 quality management system certification of EU TUV certification body,EU CE product safety certification, intellectual property management system certification,national high-tech enterpise evaluation and other honors.In order to maintain the leading edge of product technology,the company has actively carried out school enterprise cooperation to continuously promote the development of the enterprise while recruiting excellent talents in the industry.
Benefiting from the company's innovation and R&D advantages,the company has developed rapidly in just a few years. The existing R&D and production sites have restricted the company's subsequent development, and the space for capacity improvement is limited. For the company's sustainable development in the future, in 2018, GooDa invested heavily in the construction of GooDa machinery's normal headquarters Indusrial Park to support the development of the company's high-end CNC machine tool equipment project, Greatly enhance the company's CNC inteligent equipment capacit.
Let GOODA help you keeping quality at 100%!
Dongguan GooDa Machinery Manufacturing Co.,Ltd established in 2012, is the first national high-tech enterprise integrating R&D,manufacturing,sales and service of CNC milling machine tools in China.The company has manufacturing bases in Dongguan Changping,Huangjiang,Qishi and Jiangsu Kunshan, and offices in the United States,South Korea, Malaysia,Thailand,Vietnam and Brazil.At present, it is one of the largest manufacturer of CNC Duplex milling machines in the world.
GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers. {CERTIFICATE}
Manufacturer of CNC duplex milling machines and other series of professional CNC machine tools !!

{EXHIBITION }
Every feature,function and configuration of our machinery are made for our customer

The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards GOODA just need a chance to be your reliable Cooperative Partner
