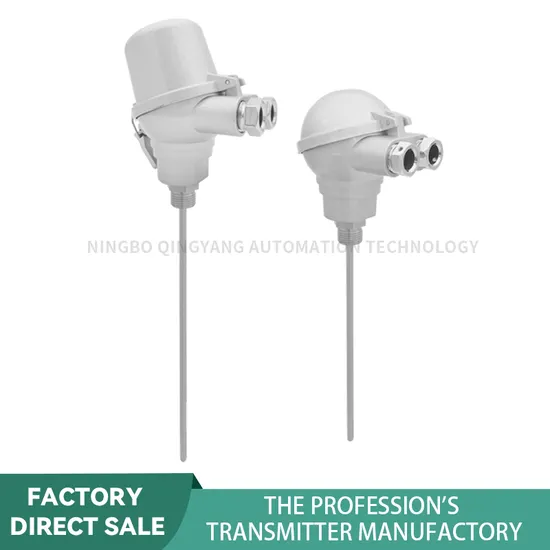

Intelligent Integrated Temperature Transmitter High Precision Remote Heat Transfer Resistance Sensor, Double Integrated Temperature Transmitter

Intelligent Integrated Temperature Transmitter High Precision Remote Heat Transfer Resistance Sensor, Double Integrated Temperature Transmitter

US$11.00 5 Pieces (MOQ)

Basic Info.

Model NO.
WZ/R-0335
Contact
Contact
Output Signal Type
Analog Type
Production Process
Integration
Material
304/316
Measuring Medium
Temperature
IP Rating
IP55
Certification
CE/ISO/Sil
Customized
Customized
Accurate
B
Transport Package
Carton Packing
Origin
China
Production Capacity
120000 Pieces / Year

Product Description


Technical Parameter
Thermal resistance species Copper heat resistance platinum thermal heat resistance
Process connection Screw or flange connection
Junction box Water proof connector flameproof terminal box or etc
Diameter Copper heat resistance:12*1mm or customized platinum thermal resistance:16*1mm
or 12*1mm or customized
Circuit type 2-, 3-, 4-wire
Tolerance class A,B,C
Sensor Pt10, Pt100, Pt50, Pt500, Pt1000, Cu50,Cu100
Protecting tube material 304,316 stainless steel or etc
Insert depth Optional
Sensor K,N,E,J,T,S,R,B,W3,W5
Process connection Screw or flange
Junction box Water proof connector flameproof terminal box or etc
Tolerance class I, II,P
Length Optional
Protecting tube material 304, 316 stainless steel or etc
Insert depth Optional

Product Features
Imported thin-film components, less thermal response time, reduce dynamic error, magnesium oxide filling probe rod, shock resistance, excellent thermal conductivity, long service life
National standard 304, 316, PTFE material, free choice, to meet the different media measurement, fixed threads, movable ferrule, flange connection support non-standard customization
From the theoretical data input to the actual oil temperature detection, simulating different media temperatures in the field, 48 hours of data recording, to ensure that each temperature transmitter is accurate and reliable~
