US$18,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Paper Core Usage
Paintings Packaging, Instrument Package, Industry
Tube Machine Type
Bending Machine
Layers of Roll Paper
12 Layer
Wall Thickness of Paper Tube
2-8 mm
After-sales Service
12 Months
Product Name
Paper Angle Protector Machine
Speed
0-40m/Min , 0-60m/Min Optional
After-Sale Service
Engineer′s Overseas Installation and Commissioning
Specification
9300*700*1400(mm)
Production Capacity
100/Pieces
Product Description

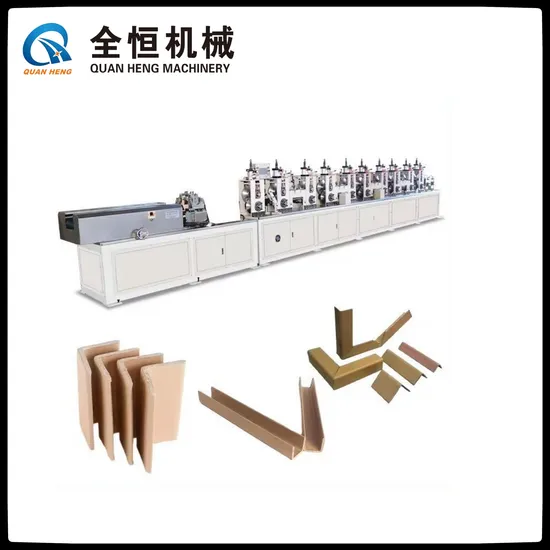

Automatic kraft paper edge production machine
Product Description Host Size:L*W*H: 9300*700*1400(mm)
Coverage:L*W : 28m*3m
Host weight : 2975kg
Total weight: 5715kg
Paper Angle Protection Specification: Wide20-100mm
Long30-9000mm
Thick2-8mm
Production speed: 0-60m/min
Control mode: numerical control
Host power: 7.5kw+4.3kw*2
Raw material: The surface of the paper 150g-200g
Core paper 300g-700g
Cutting mode : Servo tracking cutting
Number of operators :1-2people
Control System |
Main engine power | 7.5kw+4.3kw*2 |
PLC controller | Machine specific |
Interface | Machine specific |
Frequency converter | Robicon |
Major Executing Devices (Contactors, etc.) | Omron/Chint |
knob | Siemens |
Button/emergency stop | Siemens |
Pneumatic Componen | Airtac/Tianao/chengdi/detai |
Synchronization Controller | servo motor |
Configuration device |
Area size: | 28m*3m |
Host Size:L*W*H | 9300*700*1400(mm) |
Octagonal device | Ten groups |
Heating device | Four sets of double rolling wheel heating |
Paper holder type | Right angle fixed hoisting paper holder |
Glue supply | Stainless steel heating automatic circulation double-sided gluing |
Top Paper Device | Stainless steel belt driven face paper basin |
Host Mesa | Stainless steel |
Transmission device | Conveyor belt and receiving table |
Table cutting device | numerical control |
Punching die | one |
Application tools | A set of inner hexagonal wrenches |
Drive system |
Host power | 7.5kw |
Main engine speed | 1400r/min |
Hub diameter | 258mm |
Hub height | 150mm |
Reducer model | WPA120 |
Bearing | Harbin/Wanxiang |
Cutter motor | Servo Motor 4.3kw *2ITLC |
Linear guide rail | Square |
Detailed Photos
Company Profile
Packaging & Shipping
FAQ Q:Are you manufacture or trading company?A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.Q:Do you inspect the finished products?A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .Q:Does the packing strong?A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.Q:How about after-sales service process?A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy. Q.Where is your factory?A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!Q. Do you have Import & export right?A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency
