US$1,499.00
|
6 Pieces
(MOQ)
|
Basic Info.
Model NO.
NJ-hemp peeling
Portable Harvester Type
Horizontal Type
Certification
ISO9001:2008
Application Field
Agriculture
Range of Application
Ramie Green Jute Thread Flax Peeled
Power System
Electricity and Diesel
Production Efficiency
0.15-0.25acre/ Hour
Specification
Electric diesel oil
Packaging & Delivery
Package Size
150.00cm * 120.00cm * 100.00cm
Package Gross Weight
270.000kg

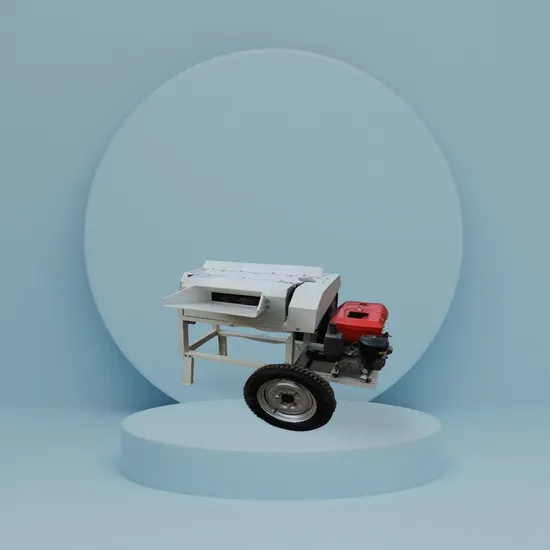

Product Description
Working Principle:
The core of the hemp stripping mechanism is an ingeniously designed rotating drum, gracefully adorned with several strategically placed angle steel beating plates, known as the hemp cutter. The process begins as the hemp stalk elegantly enters the hemp feeding mouth, where it is gently drawn into the drum. Within this dynamic environment, the stalk is expertly handled by two groups of rollers rotating in perfect harmony with the knife, systematically dismantling the hemp bone and shell. The remains are effortlessly expelled, leaving the hemp skin to gracefully detach and separate. The resulting hemp filaments emerge as the versatile hero of this process, ready for use in crafting durable hemp ropes, sturdy sacks, and geotextiles. Additionally, they serve as a prime material for advanced composite materials and textiles, offering unmatched qualities such as moisture absorption, breathability, comfort, heat dissipation, mildew resistance, bacteriostasis, radiation resistance, ultraviolet protection, and sound absorption.
Product Introduction:
This cutting-edge hemp stripping machine is a marvel of modern engineering, categorized into direct feeding jute machines, hemp striking and grinding machines, hemp stripping machines, hemp striking machines, and hemp taking machines. It offers a versatile range of power sources, including motor, diesel engine, and gasoline engine options, making it a highly advanced and time-efficient solution catering to contemporary needs.
Product Scope of Application: The electric ramie decorticator shines across a diverse range of applications, covering agricultural hemp, jute, kenaf, hemp, ramie hemp, mulberry, Lycium bark, and more.
Product Advantages:
The hemp stripping and beating machine revolutionizes the industry by elegantly peeling fresh hemp from its stem, replacing the arduous and labor-intensive manual process. Not only does it achieve complete separation of the hemp bark, but it also transforms the remaining residue into a valuable resource, fit for livestock feeding, silage, or enriching the soil by returning it to the field.
Diesel engine
| 10ph
|
Electric motor | 5.5/7.5kw (380V 50Hz 3-phase power)
|
Transmission
| 1000-1200 rpm
|
Capacity | 0.15 mu-0.25 mu / h
|
Productivity
| ≤ 0.2%
|
Net machine weight
| 255kg
|
Weight after packaging
| 400kg
|
Net size
| 1460mm * 1200mm * 1000mm
|
After packing in wooden box
| 1500 * 1220 * 1320mm
|
