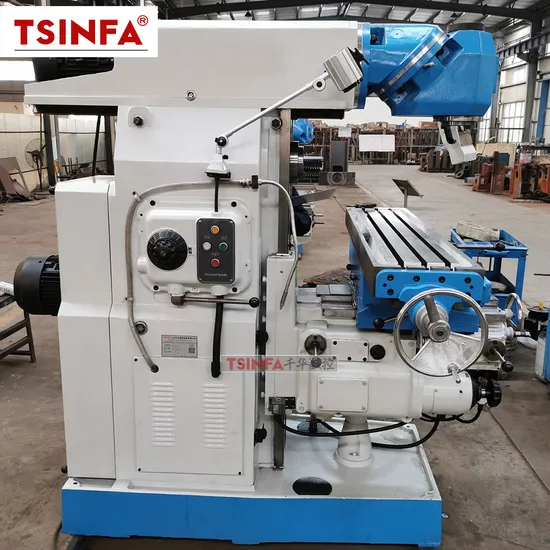

New Universal Manual Milling Machine for Metal Wn736c Factory Outlet

New Universal Manual Milling Machine for Metal Wn736c Factory Outlet

US$16,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
WN736C
Type
Universal Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Pallet
Specification
2000x2000x2250
Trademark
TSINFA
Origin
China
HS Code
8459590000
Production Capacity
500

Product Description

Product Description
The main performance characteristics:
The universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery. When the workbench rotates a certain angle and the indexing head attachment is used, various spiral surfaces can be machined.
-Milling head can be rotated 360 degrees -Worktable 45 degree rotation (optional for some models)
-XY axis automatic feed -Worktable electric lift
Product Parameters

Specification Unit WN736 WN736A WN736C WN736D WN736B
( Servo Motor )
Table size mm 1500*360 1600*360 1600*320 2000*400 1600*360
Numbers,width distance between T - slot mm 3*18*80 3*18*70 3*18*70 3*18*90 3*18*80
Table travel (X/Y/Z) mm 900*320*450 900*300*400 800*300*400 1180*300*365 1200*300*400
Travel of Arm mm 600 600 600 600 600
Swivel angle of the vertical milling head degree ±360° ±360° ±360° ±360° ±360°
Max. rotary angle of table degree / ±45° ±45° / ±45°
Distance from horizontal spindle to ram bottom mm 170 200 200 200 210
Spindle taper taper ISO50(H) ISO40(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V) ISO50(H) ISO50(V)
Level spindle speed grade steps 12 12 18 18 12
Level spindle speed range rpm 60-1800 60-1800 30-1500 30-1500 60-1800
Milling Head spindle speed grade steps 11 12 12 12 12
Milling head spindle speed range rpm 35-1600 60-1700 60-1700 60-1700 60-1700
Grade of the work-table feeds steps 8 6 18 18 6
Range of feed speeds mm/min 22-555 460/360/90 X: 23.5-1180, Y:23.5-1180, Z:8-394 X: 23.5-1180, Y:23.5-1180, Z:8-394 Stepless 0.1-700
Speed of rapid travels mm/min 555 X:1360, Y:1140, Z:300 X:2300, Y:2300, Z:770 X:2300, Y:2300, Z:770 2000/700
Main motor power kw 4(H) 4(V) 4(H) 4(V) 7.5(H) 4(V) 11(H) 4(V) 5(H) 4(V)
Feed motor kw 0.75 1.5 1.5 3 1.5
Coolant pump w 40 40 125 125 40
Gross weight/Net weight kg 2300/2100 2800/2400 3500/3300 4500/4250 2800/2400
Overall dimensions(L W H) mm 1900X1600X2050 2000X1900X2050 2050X2050X2050 2400X2000X2150 2000X1900X2050
Packing Size mm 2000X1700X2250 2100X2000X2250 2250X2250X2250 2500X2260X2250 2100X2000X2250


Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
