3D CNC Wood Engraving Machine / 5 Axis Multi Spindle CNC Router

3D CNC Wood Engraving Machine / 5 Axis Multi Spindle CNC Router

US$1,111,111.00 1 Set (MOQ)

Basic Info.

Model NO.
JCW1325R-10H 5AXIS
Spindle Layout
Rotating Spindles
Spindle Number
10
Feed Mode
Mechanical
Controlling Mode
CNC
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services
Product Type
5 Axis Multi Spindle CNC Router
Working Materials
Solid Wood
Heads Quantity
10 (Option: 8; 4)
Rotary Size
300mm Diameter, 1200mm Length, or Bigger
Structure
Guide Rail, Ball Screw
Spindle Power
3.5kw Air Cooling, Dual Side
Motor
Yaskawa Servo Motor
Control
5 Axis Synthec
Application
Furniture Making; Art Sculpture Making
Transport Package
Standard Package
Specification
5 AXIS
Trademark
CHAODA
Origin
Shandong, China
HS Code
8465990000
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
405.00cm * 225.00cm * 226.00cm
Package Gross Weight
5000.000kg

Product Description

3D CNC Wood Engraving Machine / 5 Axis Multi Spindle CNC Router
This item is very suitable for furniture bulk production, multi heads can work at the same time, many times increasing efficiency. Table movement, long time use no distortion, the more precise positioning accuracy. Each spindle can hold two tools, one tool for rough machining, one tool for finish machining ,which is equivalent to Auto Tool Changer. Simultaneous 5 axis Syntec control system, can make more complex 3d jobs. With a removable table, when you process plane material, just put the table on; when you process column /cylinder, just take off the table. Well compatibility in software: all kind of 3D carving softwares. We can make Multi heads machine with any working size according to customers' specific requirements.
Model No. JCW1325R-10H 5AXIS
Machine structure
Heavy duty steel structure
Table Removable; T-slot with clamps
Rotary working size 300mm diameter,1200mm length * 10 PCS (size can be customized)
Flat working size 300mm width,1200mm length * 10 PCS
Spindle power 3.5kw double head air cooled spindle
Max moving speed 20m/min
Max working speed 15m/min
Resolution 0.001mm
Control system 5 axis Syntec
Motor Japan YASKAWA Servo motor and driver
Inverter Taiwan Delta
Max Burden weight 1500kg
Oil system Automatic
Voltage AC380V,3 phase,50Hz

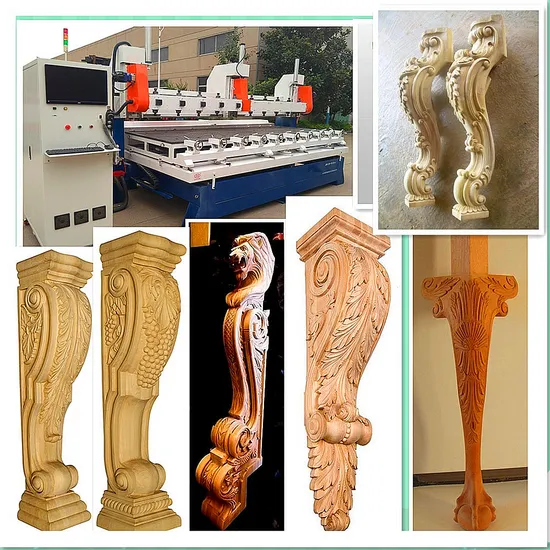

This machine is very suitable for furniture bulk production, like sofa legs, table legs, chair legs, bed legs, bed head, stair
handrails, prop guns, wooden column cylinders... it also can make 3d small statues, figures, sculptures, 360 degree human body, Buddhist statues… etc.
1. Sample testing before shipment 2. Provide 2 days free training for each machine 3. 12 months warranty for each machine 4. Friendly English version manual and operation videos for studying 5. Free technical support by phone,email,chatting or remote 6. Engineers available to service machinery overseas
