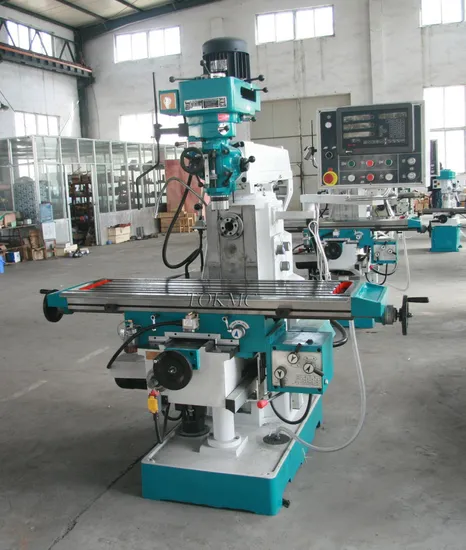

Universal Milling Machine (Milling Drilling Machine X6332D)
| US$2,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6332D
Structure
Rocker
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS
Condition
New
Machine
Vertical Horizontal Machine
Table Size
1250X320mm
Transport Package
1600X1500X2270mm
Specification
1500 kgs
Trademark
tokmc
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100 Sets/Month
Product Description
vertical and horizontal milling machine X6332D| Item | X6332D |
| Spindle taper | ISO40 R8 |
| Distance from spindle to table surface | 90-370 mm |
| Distance from spindle to column | 200-550 mm |
| Spindle speeds | 70-4540 (V) 40-1300 (H) |
| Table size | 1250x320 mm |
| Table travel | 800/300/280 mm |
| Feeding range of longitudinal,cross travel | 555 mm/min |
| Auto-feed of Z axis | 560 mm/min |
| T-slot Number/width/distance | 3-14-70 |
| Machine size | 1600x1500x2270mm |
| N.W/G.W | 1500/1700 kgs |
