Engine Winch Q235B Electric

Product Description

Main Product Series:
Established in China in 2002, Henan Mine Crane is a multi-national specialist designer, manufacturer & supplier of:
* Overhead Crane
* Gantry Crane
* Ladle Foundry Crane
* Rail Mounted Gantry Crane (RMG) & Rubber Tyred Gantry Crane(RTG)
* Slewing jib crane
* Electric wire rope hoist & Electric chain hoist
* Electric winch
* European design crane & hoists
* Lifting platform
* Crane component sets
* Material handling equipment (Electromagnet & Grab bucket & C hook......)
Product description: Electric winch with slow speed JM Model Good quality for Pulling or Lifting needs
Our electric winch is a kind of durable lifting and pulling machine ,widey used in construction ,mining industry,crane hoisting,Power plant,Shipyard,Marine etc.
We have JM and JK model:
JM series electric slow speed electric winch (crane)
JK series electric fast speed electric winch (crane)
There are two type in both series, small pull capacity and large pull capacity. Large pull capacity mostly are applicable to port building, traction of shipyard, steel structure transport and assemble, disassemble, pulling machines. Its feature is that line rope pull large, sometimes with rope guider for wire rope dispose trimly, safety and credible.
Small pull capacity mostly are applicable for construction, lifting, disassembly, traction, assembly in construction company, mine, factory and so on.
Technical Feature:
1.Independent Hydraulic brake,dual brake if necessary
2.Special design for drum size and winch overall size.
3.Durable Forged and hardness treatment gears and bearings
4.High protective motors to avoid dust and rains etc.
5. Anticorrosive paint
6.Professional package
7.One year quality guraneed
Attention:
1.Before you use the hoist,please do remember to check the hooks and bodies,the brake device and the lubrication of transmitting parts,and load chains in good condition as well as the die motions.
2.Overload is strictly forbidden.
3.No hook tips loading.No direct binding of a load with one chain.
4.No over lifting,no over lowering.
5.Keep anybody out of the place under the loading.
Standard electrical winch:
3ton with 180m wire rope, motor power 7.5kw,speed: 10m/min, wire rope dia:16mm
5ton with 250m wire rope, motor power 11kw, speed: 10m/min,wire rope dia:22mm
10ton with 450m wire rope, motor power 30kw, speed 9m/min, wire rope 30mm
Also we can supply any length wire rope on drum as client requirement.

Model		JK1	JK3	JK5	JK8	JK10
Line pull capacity (kg)		1000	3000	5000	8000	10000
Wire rope average speed (m/min)		30	30	28	20	19
Wire rope Dia.( mm):		9.3	15.5	21.5	26	30
Reduction box	Type	JZQ350	JZQ500	JZQ650	JZQ650	JZQ750
	Transmission ratio	31.5	23.34	40.17	23.34	23.34
Drum (mm)	Diameter()	190	325	406	500	550
	Length	360	520	840	900	1000
Capacity(m)		110	200	300	300	450
motor	Type	Y132M-4	YZR225M-8	YZR250M1-8	YZR250M1-6	YZR250M2-6
	Power(kW)	7.5	22	30	37	45
	Rotating speed(r/min)	1440	715	864	960	960
Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-400
Dimension (cm)		945x97x60	147x140x95	186x166x95	240x180x110	250x190x120
Weight(kg)		460	1200	2700	4000	5000

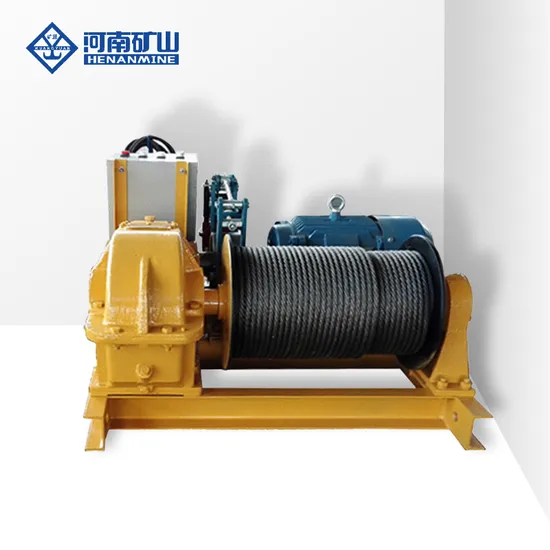

Photos for reference:
