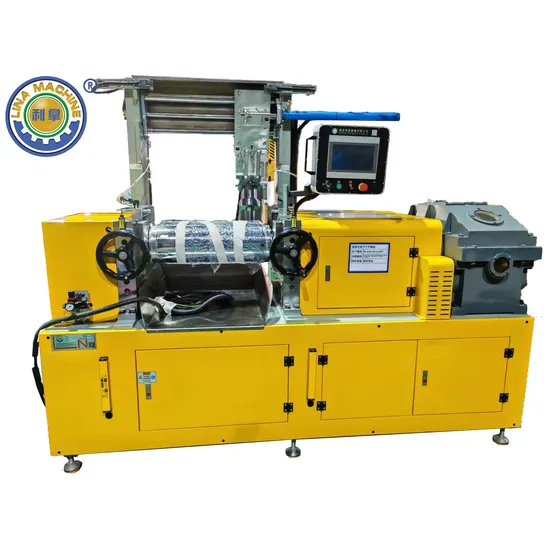

Factory Direct Sale Two Roll Rubber Mixing Mill Open Rubber Mixing machine (4/6/9inch)

Product Description

Working principle of open mill: In the mixing process, the open mixing mill is mainly dependent on the relative rotation of the two rollers to the extrusion and cutting of the material. After repeated kneading and chemical action with the process, it finally achieves the purpose of mixing through the interrupting of the molecular chain of material internal and mixing all the ingredients in the recipe evenly.
Machine application:
Suitable for blending, dispersing, shearing, plasticizing, cooling, and laminating polymer materials such as rubber and plastics.
General technical specifications for references:

Model	LN-K-120/4	LN-K-160/6	LN-K-228/9	LN-K-300/12	LN-K-360/14	LN-K-400/16	LN-K-450/18	LN-K-550/22	LN-K-560/24
Rollers diameter (mm)	120	160	228	300	360	400	450	550	560
Rollers length (mm)	320	350	600	700	900	1000	1200	1500	1530
Speed ratio	1.24	1.29	1.27	1.3	1.2-1.3	1.2-1.3	1.2-1.3	1.2-1.35	1.3
Maximum roller distance (mm)	5	5	8	10	10	10	12	16	15
Motor power (KW)	3.75	5.5	11	22	37	45	55	90/110	160
Machine weight (kg)	800	1000	1200	3500	6500	7000	10000	19500	22000
Dimensions (mm)	1650*600*1150	1650*600*1150	2200*830*1500	3000x1450x1600	3700x1700x1700	3800x1700x1800	5100x1900x1900	6200x1900x2200	6650x2740x2250

Features and advantages: Rollers material: the roller is made of high-quality carbon steel by nitriding treatment. The German machine tool makes the center height, its thickness is uniform, the control is precise, the surface is plated with hard chrome, the bearing capacity is strong, and the service life is long. Roller bearings, and lubrication: Bearing-type double-arranged ZWZ bearings, self-adjusting, and integrated lubrication system, easy to maintain, greatly improve equipment life. Safety design: ergonomic multi-directional brakes, emergencies, convenient and timely touch according to the natural reaction of human body, infrared safety switch. Safety switch: the machine adopts 360 degree non-dead safety dial switch in multiple directions, and the safety protection is good. Safety protection: The whole body adopts all-round wrapping for all transmission parts, and a new curved safety cover is adopted at the roller to isolate the operation danger. Transmission system safety: the machine adopts electronic brake, lotus coupling, single-axis output system, large torque, stable transmission, safe device convenient machine 1/2 second quick stop, and outward reversal function (circle speed adjustable), reaction Speed is the industry leader. Temperature control system: temperature control, automatic temperature control, integrated waterway cooling in place and protection to reduce pollution from circulating water sources. And the use of high temperature rotary joints, long service life and good sealing effect.
