ZTE ME3630 LTE TDD/LTE FDD/WCDMA/TD-SCDMA/EV-DO/CDMA 1x/GSM GPRS GNSS 4G Module

Product Description

Product Description
ZTE ME3630 LTE TDD/LTE FDD/WCDMA/TD-SCDMA/EV-DO/CDMA 1x/GSM GPRS GNSS 4G Module
Product Description
ME3630 is designed as LCC form factor module which supports LTE cat.4 version, 6-mode RF band for global market. ME3630 can be widely used in M2M industries such as smart meter, Security and monitor, Industrial router, DTU, CPE, Telematics etc.
* 7-mode supported including LTE TDD/LTE FDD/WCDMA/TD-SCDMA/EV-DO/CDMA/GSM, the downlink speed is up to 150Mbps
* Chinese, European and US version
* LTE 800MHz and TD-LTE 1.4GHz/1.8GHz Support
* Support GNSS
* LCC 30*30 Form factor, compatible with vlink family products
* FoTA
* Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelink extended AT commands
* Drivers for WIN XP/7/8/10, Android, Linux, WinCE OS
* Support embedded TCP/UDP protocols, PAP and CHAP protocols used for PPP connection
Product
Specifications
Overview
ME3630 is a LTE module in LCC form factor. It supports LTE TDD/LTE FDD/WCDMA/TD-SCDMA/CDMA/GSM with worldwide coverage. It delivers 50Mbps(UL) and 150Mbps(DL) data rates on LTE FDD networks and can be fully backward compatible with existing WCDMA and GSM networks.
A rich set of internet protocols (PAP and CHAP used for PPP connections)and abundant functions (GPS/A-GPS, DTMF, TTS, Remote wakeup, MMS, SMS) extend the applicability of the module to a wide range of M2M applications.
ME3630 also allows the integration of automotive and other applications requiring assured extended operating temperature range and mechanical ruggedness within the ever-shrinking space inside electronic bays in trucks, automobiles, and other mobile platforms.
C1A:
LTE FDD: B1, B3
LTE TDD: B38, B39, B40, B41
UMTS: B1
TD-SCDMA: B34, B39
CDMA EVDO: BC0
CDMA 1x: BC0
GSM: B3, B8
C1C:
LTE FDD: B1, B3, B5
LTE TDD: B38, B39, B40, B41
UMTS: B1
TD-SCDMA: B34, B39
CDMA EVDO: BC0
CDMA 1x: BC0
GSM: B3, B8
C1T:
LTE FDD: B1, B3, B5
CDMA EVDO: BC0
CDMA 1x: BC0
F1A:
LTE TDD 1.4GHz(B45/B61),1.8GHz(B59/B62)
E1C:
LTE FDD: B1, B3,B7,B8,B20
UMTS: B1,B8
GSM: B3, B8
U1A:
LTE FDD:B2,B4,B5,B12,B17
UMTS:B2,B5
U1C:
LTE FDD: B2,B4,B5,B12,B17
UMTS: B2,B5
J2A:
LTE FDD: B1,B3,B5,B7,B8,B9,B18,B19,B21
UMTS: B1,B5,B6,B8,B19
J2AS:
LTE FDD: B1,B3,B5,B7,B8,B9,B18,B19,B21
UMTS: B1,B5,B6,B8,B19
Highlights
LTE Cat.4 version, the downlink speed is up to 150Mbps, for faster experience and smaller latency
LTE 7-mode for global market, including LTE 800MHz and TD-LTE 1.4GHz/1.8GHz
LCC 30*30 form factor
Ultra package and slim design for multiple application
The work temperature range can reach form -40 to 85℃
USB Selective Suspend & Remote wakeup
USB2.0 high mode and UART interface
Rx diversity
GNSS
FoTA
CertificationCCC
CMIIT
CTA
RoHS
FCC
PTCRB
CE
IC
JATE
TELEC
Operator:AT&T T-mobile KDDI DOCOMO

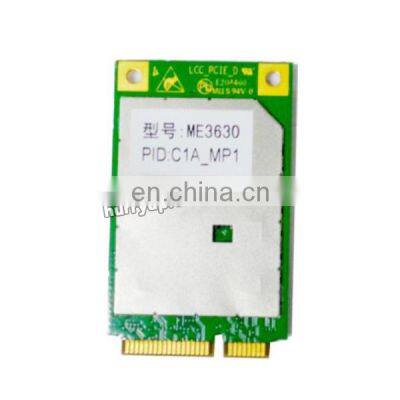

Hint: ME3630 Mini PCIE/M.2 Version is available

Network	FDD-LTE/TDD-LTE/UMTS/TD-SCDMA/CDMA2000 1X/EV-DO Rev.A/GSM
Frequency band	C1A: LTE FDD: B1, B3 LTE TDD: B38, B39, B40, B41 UMTS: B1 TD-SCDMA: B34, B39 CDMA EVDO: BC0 CDMA 1x: BC0 GSM: B3, B8
	E1A: LTE FDD: B1, B3,B7,B8,B20 UMTS: B1,B8 GSM: B3, B8
	U1A: LTE FDD:B2,B4,B5,B13,B17 UMTS:B2,B5
Dimensions	30×30×2.1 mm
Temperature	-40℃ to +85℃
Voltage	Voltage Range:3.4V~4.2V
	Typical Value:3.8V
Consumption	About 3mA standby current
Interface	LCC 80Pin
USB interface	USB 2.0
Driver	Windows XP/7/8
	Android 2.3/4.X/5.X
	Linux 2.6.10 and later
	WinCE 5.0/6.0
Data rate	(FDD)DL: 150Mbps/UL: 50Mbps
	(TDD)DL: 112Mbps/UL: 30Mbps
Function	Data/SMS/GNSS/FOTA(developing)
Commands	Standard AT commands/ZTE exclusive commands
Certifications	CCC/CMIIT/CTA
	RoHS (Planning)/FCC /PTCRB (Planning)/CE (Planning)/
	Operator:AT&T T-mobile(Planning)
Highlights	Support GNSS, VoLTE and FoTA
	Support 7 bands for global market
	Support LTE Cat.4
