Mullion Cutting Saw for PVC Profiles V-Cutting Saw Glazing Bead Cutting Machine

Product Description

Cutting Machine

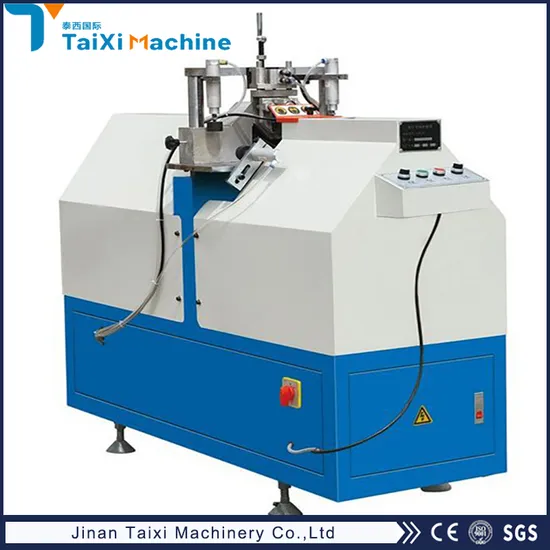

Mullion cutting saw for PVC Profiles SVJ-45
Description
For sawing V-shape tips for mullions of plastic doors and windows that are welded.
Two blades are arranged at 90°, so that two V-shape tips may be cut at one clamp of work pieces, with high precision and high productivity.
Special clamps-lift open device to prevent the escape of work piece.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Positioning Length 300~1600mm
Dimensions 1900*700*1350
Weight 210kg V-cutting saw SVJ-60
Description
For cutting 90°V-shape groove for aluminum-plastic profiles.
Automatic centralized positioning device makes the operation easier.
Pneumatic drive facilitates the operation.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Positioning Length 300~1600mm
Grooving Depth 20~60mm
Dimensions 1900*700*1350
Weight 210kg
Glazing Bead Saw SYJW-1800
Description
For cutting glass stop at the angle of 45°and for milling pressure foot.
The efficient machine is capable of cutting two trim strips at the same time.
Parameters:
Input Power 2*0.75KW
Power Supply 380V/50Hz
Working Pressure 0.4~0.6MPa
Motor RPM 2800
Gas Consumption 80L/min
Profile Width 120mm
Profile Height 29mm
Working Range 320~1800mm
Dimensions 1900*700*1350
Weight 210kg
Dual-Head Mitre Saw for PVC Profiles SJZ2-350X3500

Description
Be applicable for cutting with fixed dimensions and fixed angles at -45°, 90° or 45°for plastic profiles.
Oscillating feeding is smooth in feeding.
Parameters:
Input Power 2*1.5KW
Power Supply 380V/50Hz
Working Pressure 0.5~0.8MPa
Gas Consumption 100L/min
Cutting Angle 90°~45°
Cutting W*H 200*100mm
Cutting Range 290~3500mm
Blade Specs 350*30
Dimensions 4000*1120*1450
Weight 600kg or so
Dual-Head Mitre Saw for PVC Profiles SJZ2-400X3500
Description
For cutting of plastic material at the angle of 45°-90°.
Linear thrust feeding is applied. Pneumatic drive is used for clamping and cutting.
Parameters:

Input Power	2*1.5KW
Power Supply	380V/50Hz
Working Pressure	0.5~0.8MPa
Gas Consumption	100L/min
Cutting Angle	90°~45°
Cutting W*H	100*500mm
Cutting Range	450~3500mm
Blade Specs	400*30
Dimensions	4000*1000*1450
Weight	600kg or so
