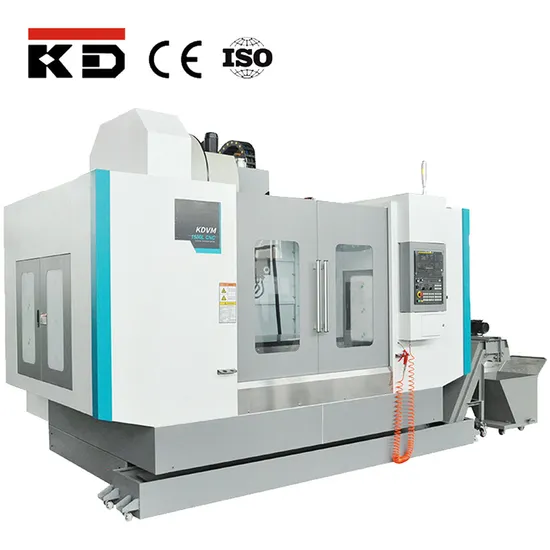

OEM CNC Milling Vertical Machining Center

OEM CNC Milling Vertical Machining Center

US$41,985.00-56,758.00 1 SET (MOQ)

Basic Info.

Model NO.
KDVM1580L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle Taper
Bt50
Spindle Speed
50-6000rpm
Max Table Load
1000kg-1500kg
X Travel
1500mm
Y Travel
800mm
Z Travel
650mm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
523

Product Description

OEM CNC Milling Vertical Lathe Machining Center Product Features
Product Specifications
MODELS
KDVM1580L
TRAVEL

X axis
1500mm
Y axis
800mm
Z axis
700mm
Spindle center to column
810mm
Spindle end to table
130-830mm
TABLE

Tablesize
1700×800mm
T-slot(width×number×space)
22mm×5×140mm
Max.table loading
1500kg
SPINDLE

Taper bore of spindle
BT50 / Φ155mm
Spindle power
15/18.5kw
Spindle speed
6000rpm
FEED

X/Y/Z fast travel speed
12/ 12/ 12m/min
X/Y/Z Torque axis motors
22/ 30/ 30Nm
ATC

Tool number
24
Max. tool size (With adjacent tool)
Ф105mm
Max. tool size (Without adjacent tool)
Ф200mm
Max.tool weight
15kg
Max tool length
350mm
Time (tool-tool)
2.91s
ACCURACY

Positioning accuracy for X/Y/Z
≤0.006mm
Min.Input
0.001mm
OTHERS

Overall dimension (LxWxH) with auto conveyor
5600x3350x3000mm
Net weight
13000kg
