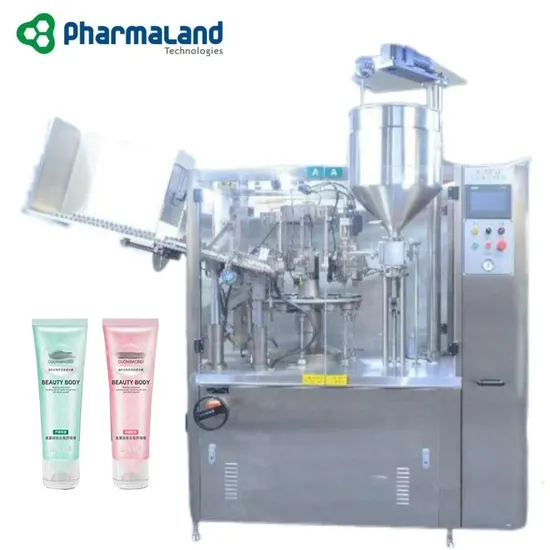

Full Automatic Ultrasonic High Speed Lotion Cream Paste Soft Tube Filling and Sealing Machine for Food Cosmetic Pharmaceutical

Product Description

Pharmaland Full Automatic High Speed Cream Grease Toothpaste Cosmetic Paper Liner Soft Tube Filling And Sealing Machine Product Description

Product Description:
This product is our company introduced abroad first, combined with the requirements of GMP optimization design and development of high-tech equipment. It has the characteristics of reasonable structure, integrated function, convenient operation, accurate loading, stable operation and low noise. PLC programmable controller is used to make the whole machine run programmed, from liquid to high viscosity fluid material (paste) filling and sealing to coding batch number (including production date) and other processes automatic operation. It is the ideal equipment for filling and sealing aluminum pipe, plastic pipe and composite pipe in cosmetics, pharmaceutical, food, adhesive and other industries, in line with GMP specifications.
Main features:
1) High-grade LCD programming controller and button combined operation video screen, fully grasp the equipment of stepless speed regulation, parameter equipment, output counting statistics, pressure indication, fault display and other operating conditions, so that the operation is simple and humanized.
2) The whole process of automatic tube supply, automatic tube down, standard, inert temperature gauge filling (optional), filling, water cooling sealing, coding, cutting edge, finished product export.
3) High-precision calibration system reduces the range of color difference between the tube body and the color label.
4) External adjustment parts, position digital display, quick and accurate adjustment (suitable for multi-specification, multi-variety production).
5) Machine, light, electricity, gas integration, no tube does not fill, the supply tube is not in place, low pressure, automatic display (alarm); When opening the protective door, it can automatically stop and other automatic functions.
6) If the reject rate is not the problem of the demander's pipe, the equipment shall ensure the pass rate of more than 99.5%. Product Parameters

Hose Material	Plastic; composite
Hose Diameter	Φ10-Φ60
Hose Length	45-250 (customizable)
Filling Capacity	2 ~ 5ml, 5 ~ 30ml, 10 ~ 140ml, 30 ~ 300ml (optional)
Filling Accuracy	≤±1%
Capacity	70-80 (50g)(branches/min)
Compressed Air	0.55-0.65mpa
Motor Power	2.5kw(380V/ 220V 50Hz)
Heat Seal Power	3.3kw
Dimensions	2500*1200*2400mm
Main Weight	1600kg

Detailed Photos
Detailed Image

Delivered Project
Company Information
Pharmaland Technologies Ltd, is a Canada company that was found in 2005 in Toronto with a version to offer affordable quality nutraceutical equipments and technical supports to our customers in nutraceutical and food industries. With a global source of technologies and partnerships with those strategic manufacturers mainly in China, Pharmaland offers those most competitive products of the latest technologies with the world leading brand value.

Pharmaland Technologies' machines are designed and developed with concepts and standards of Canadian mechanical quality and safety, and built up from our facilities of jointed venture and strategic partnership globally, mainly from those leading nutraceutical machinery manufacturers in China to offer solid, dependable, affordable and build-in last and long durations of production and package need.

We have our technical support team both in Toronto and Shenzhen China. We have our workshop, showroom and training center as well as parts inventory warehouse in China to provide our prompt service to global customer need.

Packaging & Shipping
FAQ Q1: How can you ensure the machines' quality?
A1: Our factory is equipped with high precision lathe, and we only adopt superior material and leading brand components, the machines are designed in accordance with GMP standard.
We have very strict internal inspection during production and before shipment, will provide photos and testing video before shipment to our clients, the machines have one year warranty but life time service .
Q2: Will validation documents provided?
A2: Yes, we can provide full set documents, IQ, OQ,PQ etc.
Q3. Any certificate you can provided?
A3: ISO9001. CE and GMP approved.
Q4: What kind of after-sales service you can provided?
A4: 1. We offer 12 months warranty and lifetime technic service .
2.Here is any technic problem, we will response within 24 hours by email or over phone, if problem can't be solved on-line, we can arrange technician to provide on-site service.
Q5: Can you provide customized manufacture?
A5: Yes, we have professional technician team to provide customized solutions, just share with us your request for evaluating.
Q6. How can I trust you for first time cooperation?
A6:
1. We provide our business license for verification.
2. With over 20 years of industry experience and good reputation on the market.
3. You're welcome to visit our factory.
4. We support online ordering.
5. Balance payment is made upon satisfactory inspection of machines
