Qt10-15 Auto Hollow Solid Stock Paving Bricks High Capacity Block Making Machine

Product Description

Product Description

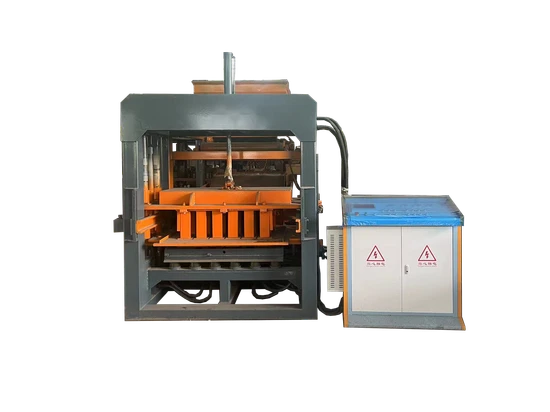

Tengfei Qt10-15 Full Automatic Block Molding Machine in Factory Price
QT10-15 is an automatic block making machine, it can make different hollow and solid bricks by changing mold, it also can make
paver blocks by adding pigment feeder. The production line includes QT10-15 host machine with controller and hydraulic station,
stack machine, JS750 mixer and 8 meters belt conveyor, PLD1200 batching machine and pallet feeder machine
Production line showing:

Daily production capacity:

Size	pcs/mold	pcs/hour	pcs/8hour
400*200*200mm	10	2400	19200
400*150*200mm	12	2800	23000
400*100*200mm	20	4800	38000

Advantages of our machine:
1. Machine with PLC controller is automatic, no need people to operate, which will save labor cost!
2. Machine with two sets of 7.5KW vibration motors and vibration box, which shapes bricks faster and stonger!
3. The shape cycle of block machine is 15s, which has large daily production capacity, satisfy the different demand
of different customers!
4. The total weight of block machine is 5.8T, which has stronger structure than others!
5. Machine with fast belt conveyor that transfer material from hopper to the material feeder cart, no waste of material.

We have different models at different price with different daily production capacity, please feel free to send you demand of daily production,
let's discuss a suitable machine!
QTJ4-40 3000-5000 pieces each day!
QTJ4-24 4000-8000 pieces each day!
QT4-15 5000-10000 pieces each day!
Please click picture to check the product details!
Product Parameters
QT10-15 block making machine
1. Dimension: 4400*3000*2800mm
2. Weight: 9.8T
3. Pallet size: 1150*900*25mm
4. Shaping method: vibration and hydraulic
5. Shaping cycle: 15s
6. Power: 44.58KW
Stack machine
1. Dimension: 2000*2000*1800m
2. Weight: 1.2t
3. Power: 2.25kw
JS750 mixer
1. Dimension: 3300*2200*3300m
2. Weight: 3t
3. Lift motor: 7.5KW
4. Mix motor: 30KW
5. Water pump: 1.1KW
PLD1200 batching machine
1. Dimension: 9.6*1.7*2.3m
2. Weight: 2 tons
3. Power: 12KW
4. Capacity of scale hopper: 1.2m³
Two storage hoppers and three storage hoppers are optional! You can choose according to the material.
Block sample
This versatile High Capacity Qt10-15 Hollow Block Machine is designed to produce a variety of bricks simply by changing the mold. Plus, we offer customized mold solutions to meet your unique building needs.
Feedback from customer
