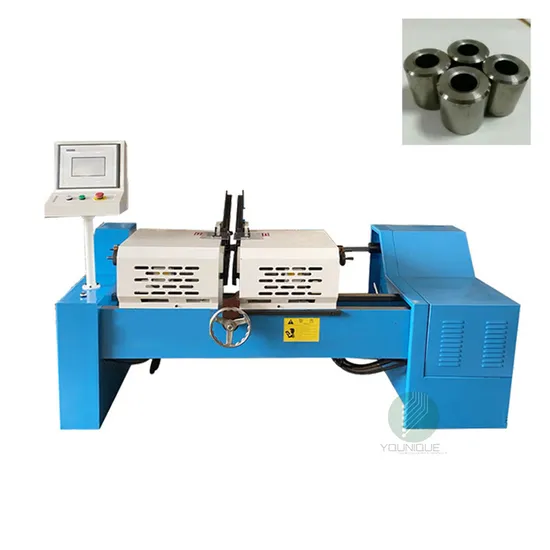

Automatic Copper Aluminum Stainless Steel Pipe Tube Metal Bar End Chamfering Machine

Product Description

Product Description
Technical Specification

Model	YE-80SM
Main motor power	2.2KW(2 sets)
Main motor brand	Nantong Guanshun
Main motor	380V*2.2KW*6HP*50HZ
Bearing brand	NTN Corp
Electric appliance brand	Zhejiang Chint
Oil cylinder	customization
Working pressure	MPA6-8KG
Applicable outside diameter	Round pipe Φ10-80mm
Working length	100-600mm
Working accuracy	±0.1mm
Working speed	3-6 seconds/piece
Applicable material	Steel pipe, iron pipe, stainless steel pipe, aluminum pipe, copper pipe, plastic pipe, nylon pipe, round rod
standard configuration	Machine 1 SET cutter head 2 pieces (installed on the machine) Special wrench 2 pcs hex wrench 1 set Adjustable wrench 1 pcs
Machine dimensions	2200x1000x1200mm
Mechanical weight (reference value)	1000KG

Main characteristics of machine tools:
○ This machine is manual discharge, automatic feeding, clamping, feed, back, release clip, discharge, automatic cycle.
○ The machine feed points fast forward and work, can adjust the cutting chamfer speed to complete the smooth processing of the finished surface.
○ The machine is suitable for round pipe and round rod end face inside and outside angles can be completed at one time chamfer and shave action, fast and accurate;
○ In order to ensure that the center line of the machining object is accurate and unchanged, the clamping die is precisely designed with the cutter head, and the machining object can be uniformly completed at one time;
○ Cutter head by special design blade normalization, adjust the tool distance, simple and fast.

Main Application
Packaging & Shipping

Company Profile
Professional and Expert Automatic Machine Supplier
--To create high efficient electric solution.
•WENZHOU UNIQUE ELECTRIC CO.,LTD, formerly known as YUEQING UNIQUE ELECTRIC CO.,LTD. Which is specialized in manufacturing, marketing and R&D of automatic terminal lug assemble machine, terminal stamping mould, SC type copper lug automation equipment, copper aluminum terminal lug production equipment, wire crimping machine, wire terminal & connector, high& low voltage electric appliance and so on.
•The product is widely used in electronic and electric, information communication, automobile electronic, safety production, space and aviation, petrochemical industry and building industry ,. Etc. The qualification of most product has met the technical and quality standard of Germany, UK,, The U.S., other developed countries.
Our Core Values
More than 16 years of manufacturing experience and 13 years of overseas marketing development. We do not only supply you with custom automatic machines but also give you a solved solution for electronic and electric site.
Be your "professional, safe and reliable" long-term supplier.
•Working in a mutually respectful relationship means that unique electric shows an understanding of the needs of the clients and strives to meet those needs.
•Serving each client with honesty and integrity means that regardless of our position on a situation, you will know that we are committed to working transparently, allowing us to build a strong, long-term relationship.
•With a relationship based on trust and transparency, you benefit from straightforward communication at all steps of your project without needing to fear surprises, hidden costs or delays.
Certification and Exhibition

FAQ
Q: How to choose the pipe/tube cutting machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
-Wall Thickness Range
- The Pipe Material
- Cutting Angle
-Cutting Length
- Tube Original Length
Q: What delivery time for standard machine?
A: Within 35 working days after received advanced payment.
Q: What about your machine warranty?
A: One year warranty after machine reached customer's workshop.And will responsible for lifetime maintenance
Q: What about delivery terms and payment terms?
A: Delivery terms: 50% deposit, 50% paid before shipment.FOB Ningbo, ClF your portPayment Terms: T/T, L/C
Q: How about your service?
A: Before Sales Serive:
1. We will confirm the right model according to the offered pipe inforamtion.
2.Welcome to visit our factory and workshop before you place an order.
After Sales Service:
1. We provide manual,detailed machine installation,commissioning video for operate machine.
2.We provide free installation,commissioning and training at our factory.
If you need enginer go to your factory for machine training, air tickets,food,hotel, local transportation, engineer's salary should be at your account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
