400kw Solid State Welder for High Frequency Welded Pipe Production Lines

Product Description

Are you looking for a high-quality high-frequency welder with excellent performance?
The whole set of solid state HF welder comprises of the following seven parts: rectifier cabinet, transformer, inverter cabinet, console, 2D adjustable bracket, water cooler and output leg.Solid state HF welder is designed for straight seam induction welding of steel pipe and for continuous working., the whole set of equipment achieve the function of equipment linkage control and diagnosing faults by PLC system, the working statue is observed by LCD display.
Quick Details

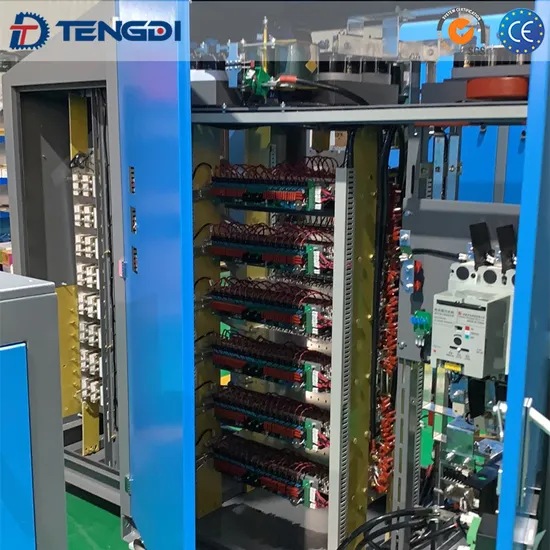

The integrated design of the switch and the rectifier part, in addition to the function of the switch cabinet, also has the rectifying control function of the solid-state high frequency welder. 1) Installed 3-phase full-controlled thyristor rectification bridge to realize power adjustment of the high frequency welder.2) Installed flat-wave reactor, flat-wave capacitor and filter to improve the flat-wave coefficient.3) Protection reactor, ammeter, and current hall sensor are installed to protect and monitor the inverter bridge.4) Siemens S7-1200 PLC is installed to realize power logic control and Ethernet communication functions.


Packaging & Shipping
Processing capacity
Exhibition photos
Certifications
FAQ
Q: Are you manufacturer?
A: Yes. We are manufacturer. We have our own technical team. Welcome to visit us.

Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!

Q: What info you need before you make the proposal?
A: The pipe diameter and thickness range which you need or the profile drawings material information, your special requirements and speed of the machine.

Q: How do you do QA?
A: We have special team do strict QA, this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure it is in the range of tolerance critical parts will be inspected for all dimensions.

Q: Why choose you? What is the difference between you and other Chinese supplier?
A: You can get higher quality product & better professional service from TENGDI with same price.
