Anti-Climbing Row Welding Machine Wire Mesh Welding Machine

Product Description

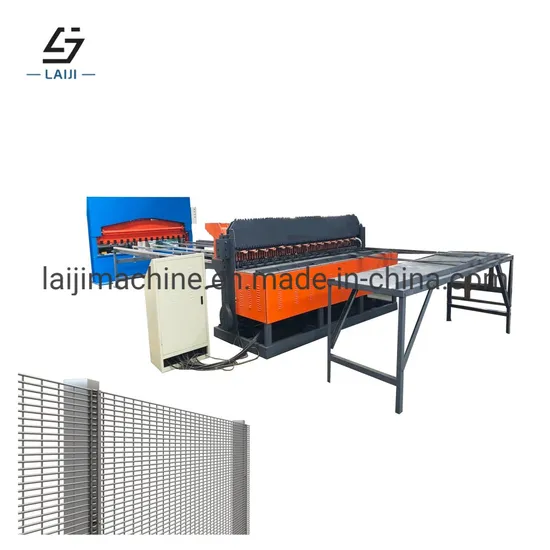

Anti climbing row welding machine
Anti climbing row welding machine adopts PLC control system with touch screen input, The machine adopts synchronous control technology.The sub control welding and welding time are controlled by the digital programming system. The operation is more intelligent, and has the characteristics of one-time compression and sub welding. The welding power is electric. The stepping motor hopper is used, the braking motor drives the trolley wire feeding, and the stepping motor drives the trolley wire drawing.
Both the line wire and cross wire will be cut in advance.Fence mesh used for railway,highway,construction and so on.

Product Parameters

Model	LJ-HLW-2000	Welding Width	2000mm
Wire Diameter	3.5-4mm	Mesh size	25*75mm
Welding Speed	Max.100times/min	Transformer	125kva
Dimensions	6.5*3.2*1.6m	Weight	3600kg

Mechanical advantages
★ Both line wire and cross will be cut in advance.★ T the line wires are placed manually, and the cross wires drop automatically.★ The width and mesh size can be adjusted, and the dimensional accuracy is high, and can be arbitrarily adjusted within the specified range. ★ Machinery can be equipped with flat mesh system if you need to produce flat wire mesh.★ You can choose servo motor pull mesh repeated.
Product Description
Finished product


Company Profile


FAQ
Q: What kind of wire can your machine weld?A: Black wires,iron wires,galvanized wires.Q:Where is your factory located?A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang or beijing airportQ: How many years are your company engaged in the wire mesh machines?A: More than 30 years. We have our own technology develop department and testing department.Q: Can your company send your engineers to my country for machine installation, worker training?A: Yes, our engineers went to more than 60 countries before. They are very experienced.Q: What's the guarantee time for your machines?A: Our guarantee time is 2 years since the machine was installed in your factory.Q: Can you export and supply the customs clearance documents we need?A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.If you are interested in our machines, please contact us now,We will provide you with professional and reasonable solutions.
