Knife Sharpener and Grinding Machine

Product Description

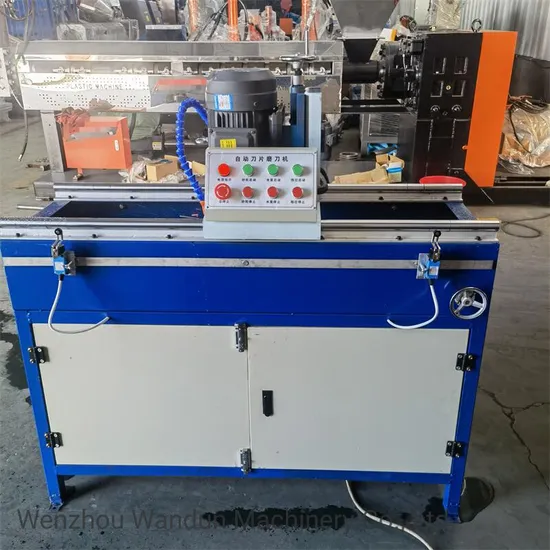

INNOVO-F knife sharpener grinding machine

Quick Details
Condition: New
Type: Surface Grinding Machine
CNC or Not: Normal
Place of Origin: Zhejiang, China (Mainland)
Brand Name: innovo
Model Number: INNOVO-F
After-sales Service Provided: Engineers available to service machinery overseas
brand: innovo
usage: knife grinder
Max grinding wheel: 200x100x 150mm
Max cutting length: 1700-5000mm
Packaging & Delivery

Packaging Details:	wood case
Delivery Detail:	20days after payment

Specifications
INNOVO-F knife sharpener grinding machine
manufactured by senior engineers
various of oblique knife edge
ideal equipment
low
INNOVO-F knife sharpener grinding machine
Multifunction and environmental protection knife grinding machine (also named: automatic knife grinder) was made according to years of knife grinder's precision manufacturing experience by Tianming printing machine. It is a new type of automatic knife grinder which takes the advantages of a number of grinding machine manufacturers and absorbs the advanced technology from Germany.

INNOVO-F knife sharpener grinding machine
Multifunction and environmental protection knife grinding machines are full-feature, its appearances are grand, its design is advanced. There are many technology projects fill the gaps of grinding machine in domestic, its scientific and technological level has a leading position in the international grinder industry. For example: water-cooled motor patented technology allows the cooling water spray from the wheel center so that the effect of cooling increased three-fold; Wheelhead uses paste-type cylindrical grinding wheel to extend 1 / 3 service life of grinding wheel, so that greatly reduces the cost of milling knife; The polishing wheel head uses combined wool wheel polishing, can fully remove the knife chip and protect the knife blade well; The cleaning and closing residue device with a filtration system let the knife grinder energy-saving and environmentally friendly.

INNOVO-F knife sharpener grinding machine is applicable to mill a variety of straight faced cutters. It is an ideal grinding equipment for the printing, paper, wood, plastic leather, making panels and other industries, and it is very suitable for the companies and agencies which with large amount of sharpening to choose to use, such as grinding centers, printing houses.

INNOVO-F knife sharpener grinding machine
Wheelhead System
01. Water-cooled motor (patent): cooling water emitted from the central wheel, center so that the effect of cooling become better
02. Wheelhead can move back and forth

Drive Mechanism
01. Sprocket chain drive
02. Transducer timing devices: travel speed and the wheelhead speed adjustable

Machine Structure
01. Gantry-type body: carbon constructional quality steel which has been heat treatment
02. Rolling positioning linear guide: Rail can be replaced, the life of machine is more longer, the maintenance costs of machine is more lower, the travel transmission of machine is more stable

Loading Knife Structure
01. Electric magnetic chuck: uniform suction, milling knife is more straight-line, effectively improved the work efficiency

Main Function Deployment
01. Centralized refueling devices: lubricating the main box, lift pallet, elevated screws
02. Grinding wheel automatic feed: automatic feed to grind knife
03. The polishing wheel head removes the knife chip devices: using combined wool wheel polishing, can fully remove the knife chip
04. Self-cleaning function: can wash the wheel gray and iron gray inside body automatically
05. Auto-close residue function: centralized collection of waste residue, easy to clean, more cleaner
Optional Device
01. Imports of electrical components: Schneider electric (optional, costs excluded)
02. Scraper Clamp: dedicated for toilet paper device (optional, costs excluded)
INNOVO-F knife sharpener grinding machine
Size of grinding wheel --------------------------------------------------Φ200x100x 150mm(Φ300x100xΦ250)mm
Maximum grinding width ----------------------------------------------- taken 22°as final 300 mm
Effective height of the wheel and worktable -----------------------80 mm
Workbench rotating degree --------------------------------------------0 - ±90°
Rotation speed of wheelhead ------------------------------------------ conversion is adjustable
Travel speed of wheelhead ---------------------------------------------- 5 - 15 m/min (conversion is adjustable)
Power of driving motor ----------------------------------------------------0.55 KW
Power of wheelhead motor ----------------------------------------------3(7.5) KW
Power of water pump motor ---------------------------------------------0.25 KW

INNOVO-F knife sharpener grinding machine

No	Specifications / Model	Maximum grinding length	Overall dimensions	Machine net weight
	unit	mm	mm	kg
1	1600F	1700	4080x1000x1550	4200
2	2200F	2200	4680x1000x1550	4700
3	2600F	2600	5080x1000x1550	5200
4	2800F	2800	5280x1000x1550	5700
5	3000F	3000	5480x1000x1550	6200
6	3200F	3200	5680x1000x1550	6500
7	3500S	3500	5980x1000x1550	7000
8	4000F	4000	6580x1000x1550	7500
9	4500F	4500	7080x1000x1550	8000
10	5000F	5000	7580x1000x1550	8500

Machine transport and packing
__________________________________________________________________________
1. The packing of small machines is confirm to export wooden case standard, strong and durable. The wooden case's thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
Our Company:
_____________________________________________________________________

Certificate:
______________________________________________________________________
FAQ:
______________________________________________________________________
Q1: Are you a manufacturer?
Yes, we are specialized manufacturer of hot foil stamping machine and die cutting machine in China over 20 years.
Q2: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q3: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to purchaser's factory, all travel cost paid by purchaser.
Q4: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, pls contact us and we will reply you through product's photos and videos to make every detail clear.
Why choose us?
_____________________________________________________________________
1.Our brand "INNOVO" is well-known in our domestic market and over 80 countries and territories. Europe, South America, Latin America, Southeast Asia, Middle East, Africa etc.
2.Genuine products with excellent quality. Company has always proved the 100% quality.
3.After-sales service and technical assistance: company provides after sales service and technical assistance as per customers' requirement and needs. After-sales service provided engineers available to service machinery overseas.
4.Cost saving: lon-life, shock resistant and high reliability bearings with excellent quality and better performance, resulting in increased cost saving.
5.Less cost of purchase: We are the manufacturer directly.
6.Attendant customers queries promptly.
