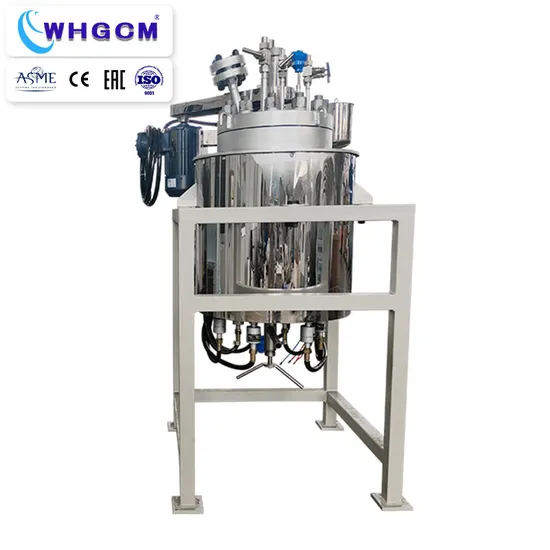

CE Factory Industrial Hydrogenation High Pressure High Temperature Chemical Vessel Kettle Tank Reactor
| US$4,975.00-8,820.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
24042601russia50L
Type
Tank Reactor
Material
SS304, SS316L, Hastelloy, Titanium, Zirconium
Capacity
0.1-50000L
Structure
Open, Closed Type(with Manhole)
Pressure
-0.1MPa-60MPa
Agitator Model
Paddle, Anchor Frame, Turbine, Ribbon Agitator
Tower Reactor Type
Chemical Pressure Reactor
Heating
Electric, Steam,Thermal Oil, Far Infrared Heating
Heat Transfer Structure
Jacketed,Inner Coil, Combined Type
Automatic Grade
Semi-Automatic
Condition
New
Low-Pressure
-0.1MPa<P<1.6MPa
Midium-Pressure
1.6MPa<P<10MPa
High-Pressure
10MPa<P<60MPa
Core Components
Motor, Pressure Vessel, PLC, Gear, Pump, Gearbox,
Certification
ASME-U CE-PED EAC-Coc Dosh Saber ISO
Nozzle Ports
All Nozzle Ports Can Be Customized
Control System
Pid PLC IoT Dcs Automation Control Optional
Mixing Type
Different Agitators Against Reaction Needs
Sealing Type
Magnetic Seal/Mechanical Seal/Packing Seal
Manufacture License of Special Equipment
A1&A2
Key Selling Points
Hastelloy Titanium Nickel Zirconium Pressure React
OEM/ODM
Available
Transport Package
Standard
Specification
GSH0.1-GSH50000
Trademark
WHGCM
Origin
Shandong, China
HS Code
8419899090
Production Capacity
1000 Unites Per Year
Product Description
Product Parameters
| Lab Reactor Technical Parameters | ||||
| Working Volume (L) | 0.1~1 | 1~10 | 10~25 | 25~50 |
| Working pressure(MPa) | Negative pressure 0.1~40 MPa | Negative pressure 0.1~40 MPa | Negative pressure 0.1~30 MPa | Negative pressure 0.1~30 MPa |
| Working temperature(ºC) | -196~500 ºC | |||
| Stirring speed (r/min) | 0-1500 | |||
| Motor power (W) | 40~80 | 80~200 | 300-750 | 1100 |
| Heating power(KW) | 0.8~1 | 1~3 | 3~6 | 4~9 |
| Heating type | Electric heating, steam or water or thermal oil circulation, far infrared heating. | |||
| Discharging type | Discharging from bottom, sampling from kettle lid | |||
| Mixer Shaft | Adopt self-lubricating wear-resistant sleeve, suitable for mixing various media. | |||
| Stirring type | Paddle, lmpeller, Anchor, Screw, Belt or as per customer request | |||
| Seal type | Magnetic seal, packing seal | |||
| Reactor material | Contacting material inside kettle mainly use SUS304, SUS316L, SUS321, SUS310, as well as titanium, nickel, zirconium, hastelloy,etc, or lined with PTFE, PPL, PFA, Ni (Ni6) according to various reaction medium. | |||
| Kettle lid open port | Needle Valve on Gas Port and Liquid Port, Bottom Insert Tube for sampling or inlet use, Pipe Plug on Solid Charging Port, Platinum Resistance (PT100)on measuring and controlling Temperature Port, Pressure Gauge and Safety Device (Blasting Disc) on Security Blasting Port, and Cooling Coil Faucet for cooling water inlet/outlet. | |||
| Controller Device | Equipped with automatic or programmed PlD or PLC to achieve: Temperature display and control, accuracy + 1 °C; Program Control; Mixing Speed display and control; Pressure display and control; Level display and control; Flow display and control; Valve open/close control, etc. | |||
Certifications Customer Visit & Showcase Production Equipment Packaging & Shipping FAQ
1.Are you trading company or manufacturer?
We are professional various reactors customization manufacturer, with ASME CE EAC DOSH ISO Certificates.
2.Pre-Sale Stage
Provide Design Drawing by free and Suitable Equipment Model according to customer's request, for accurate design and quote, please kindly advise below:
1). Working Volume
2). Max Working Temperature
3. Max Working Pressure
4. Reactor inner Contacting material:SS304, SS316L or others?
5.Reactants and property,Whether it is flammable and explosive?
6. With mixer/agitator or not
7.Others more details
3.Production Stage
Whole time report for manufacture status;
Inspection video for quality checking;
Full set Engineering Documents, include User Manual, General Drawing, All Related Test Report, Approval Certificate.
4.After Sale Stage
Life long service for all equipment;
Free spare parts in warranty period;
Discount price for all spare parts after warranty period;
Technical consulting is always for free.
5.Training & Installation
Arrange our engineer to assist customer in equipment assembly and installation on site or online;
Training workers to use machine properly.
