Anon Agricultural Machinery Grass Corn Forage Harvester Silage Harvester

Product Description

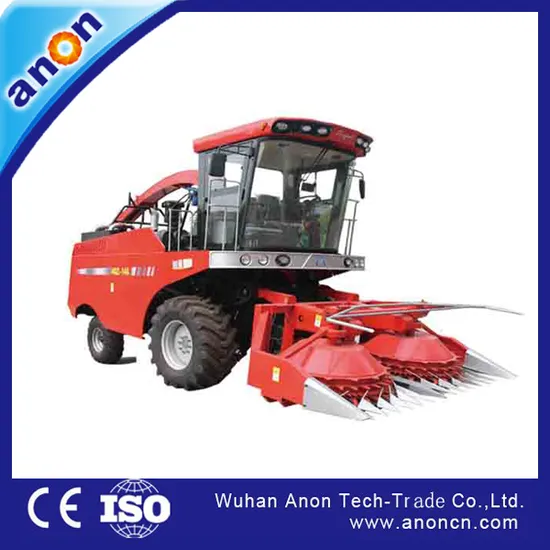

ANON Agricultural Machinery Grass Corn Forage Harvester silage harvester
Silage forage Harvester is mainly used for harvesting maize, sorghum and grass etc. Multi-functions can be achieved at one time, like harvesting, chopping, kneading and blowing silage to trailer etc. It can work independently , or work as a header by being mounted on tractor.
All stalks and leaves are finely chopped and grains pulverized for effective rumination, Silage Harvesters-acknowledged the world over as the benchmark for best chopping quality. The cost-effectiveness of these machines is clear: make more use of your existing tractors, optimize coordination of harvesting operations with transport logistics, just-in-time harvesting to meet your schedule, obtain best silage quality at the lowest cost, plus straightforward servicing
Feature of green grass straw cotton maize corn silage forage harvester price for tractor
1. crushing: a roller-type grain breaker using high technology.
Grain breakage rate is over 95%
Working principle of roller crusher
The double roller is flexible and can be discharged smoothly when entering foreign matter, thereby reducing the failure rate.
2. Super horsepower
Weichan brand super-horsepower 336hp engine,high powerful, fuel-efficient and easy to maintain.
3. Automatic sharpening
With automatic grinding, the quality of the cutting can be continuously guaranteed.
4. Automatic oilingThe Germany technical automatic oil filling system is installed to ensure the bearing life and improve the stability of the machine.
5. Install double hydrostatic drive
The walking system and the feeding system are all equipped with imported double hydrostatic drive, which is flexible and greatly reduces the failure rate.
6. Hob type cutting
The design of the knife roll adopts Deere design, the blade is arranged in 4 rows of herringbone, the length of the cutting is 9-22mm, the two steps are infinitely adjustable, and the feed length is accurate and perfect.
7. Fast efficiency
The feeding inlet width is up to 750mm and the harvesting width is 3000mm, which ensures large material throughput, ensures effective flattening of materials, and forms a stable material flow during operation.
8. Good stability:
The imported Trelleborg 500 meridian vacuum wide tires reduce the compaction of the working ground and ensure that the ditch is not pressed.
9: High configuration
Ultra-high configuration for easier operation and more comfortable summer work
Specification of green grass straw cotton maize corn silage forage harvester price for tractor

Model		AN4QZ-14A
Overall dimensions (L*W*H)mm		6560*3100*3450MM
Working width (mm)		2900
Working efficiency (ha./hour)		0.66-1 ha./hour
Cutting stubble height (cm)		≤15
Cutting length of stems (mm)		9-22MM can be adjusted
Feeding capacity		14kg/s
Whole weight (kg)		8800kg
Minimum passing radius (turning left)		7500mm
Minimum passing radius (turning right)		7500mm
Guide wheel		1580mm
drive wheel			2250mm
driving tire			15-24 [Φ1330×410 mm]
Air pressure			0.18~0.2 MPa
Guided tire			10-15 [Φ750×254 mm]
Air pressure			0.18~0.2 MPa
Wheelbase			2300mm
Minimum ground clearance			2400mm
Driving cab type			common type
Minimum cutting height			≤150 mm
Header lifting range			120-830 mm
Straw shredding mechanism Type			drum type
Rotor diameter			630mm
Spindle speed			1200 r/min
Throwing height			5350 mm
Throw distance			≥8 m
Throwing cylinder rotation angle			270
walking speed			0-20km / hour infinitely variable speed
Number of rake blades			48

Detail of ANON Agricultural Machinery Grass Corn Forage Harvester silage harvester
