Plastic Products Injection Molding Machine
| US$295,000.00-320,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMI-12000
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Material
PP
Products
Plastic Chair
Voltage
380V
Capacity
70-75PCS/H
Transport Package
Wooden Block
Specification
5500
Trademark
GM
Origin
China
Production Capacity
5sets/Year
Product Description
Product DescriptionInjection system
. Nitriding alloy steel screw charging barrel
. Standard injection nozzle
. Double cylinder balance injection unit
. Mobile hopper
. Anti-cold start-up of screw
. Automatic dislodging function
. Anti flow casting function
. Multistage charging barrel PID temperature control (4-7stages)
. Automatic inspection on material molten and material injection fault
. Precision electronic meter control on material injection/molten stroke
2 . Mould locking device
. Precision electronic meter control mould locking / thimble travel
. Mould locking three plates / Mould plate & toggle adopt high rigid nodular cast iron.
. Two stages ejector forward / backward movement controlled by computer
. Mould low pressure protection function
. Hydraulic mould adjusting device
3 . Hydraulic system
. High performance proportional variable pump system
. Molten material back pressure adjusting device
. Full flow precision return oil filter
. Automatic adjustment of system pressure and flow
4 . Control system
. Input / output viewing function
. Setting function of automatic temperature retaining and heating
. Time / position / pressue, three conversion modes
. Independent adjustment on slope of each movement
. Two-sets of hydraulic core pull / un-screwing mould release Product Parameters
| MODEL/ | GM-12000 | ||
| INJECTION UNIT/ | A | B | |
| Screw diameter/ | mm | 120 | 125 |
| Shot size(theoretical)/ | Cm³ | 6670 | 7200 |
| Shot weight/ | g | 6000 | 6480 |
| Injection pressure/ | Mpa | 159 | 146.5 |
| Injection rate/ | g/s | 900 | 976 |
| Screw L/D ratio/ | L/D | 20.8 | 20 |
| Screw speed/ | r.p.m | 0-100 | |
| Nozzle Diameter/ | Srmm | 25 | |
| CLAMPING/ | |||
| Clamp tonnage/ | KN | 12000 | |
| Toggle stroke/ | mm | 1100 | |
| Mould Thickness/ | mm | 500-1150 | |
| Space between tie-bars/ | mm | 1230X1105 | |
| Ejector stroke/ | mm | 300 | |
| Ejector tonnage/ | KN | 210 | |
| Ejector number/ | Piece | 21 | |
| Hole Diameter/ | mm | 250 | |
| OTHERS/ | |||
| Heat power/ | KW | 63 | |
| Max. pump pressure/ | MPa | 16 | |
| Pump motor power/ | KW | 128 | |
| Valve Size/ | mm | cartridge valve | |
| Machine dimension/ | m | 14X2.9X4.1 | |
| Machine weight/ | t | 63 | |
| Oil tank capacity | L | 1800 | |

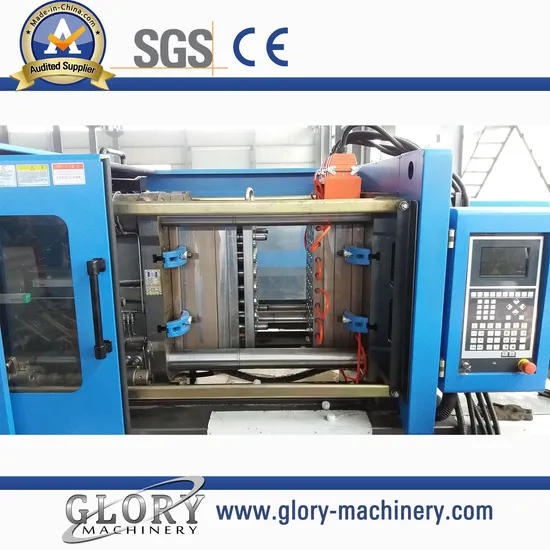

Detailed Photos
