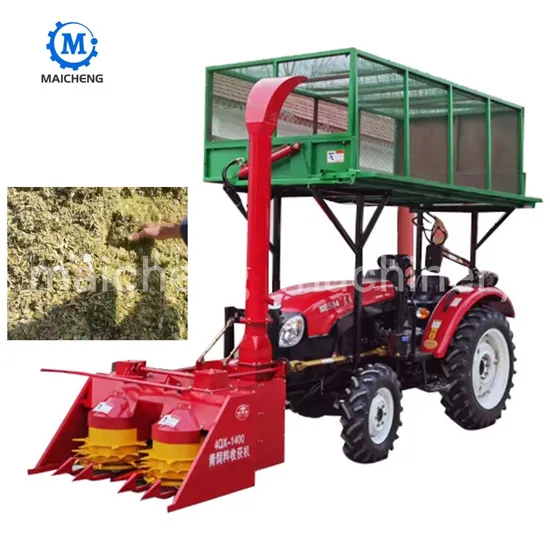

Hot Sale Corn Silage Harvester Corn Harvester Powered by Tractor Harvesting Machine

Product Description

Silage Machine Description
The corn silage machine mainly harvesting straw crops such as corn, sorghum, and grass, suitable for small dairy farms, agricultural ranches, and individual farmers.The corn silage machine employs advanced cutting and compacting technology, ensuring high quality and efficient production of silage feed. Its unique design features easy operation and very low maintenance costs while its powerful processing capability ensures stable continuous operation. In an era where environmental protection and sustainability are becoming global focuses, the corn silage machine not only enhances agricultural production efficiency but also contributes to the recycling of resources, offering a green and efficient solution for modern agriculture.
Working Principle
The corn silage machines operate by obtaining power from electric motors or internal combustion engines, which is transmitted to the main shaft and then drives the pressure roller and the cutting disc. The crops are chopped and then ejected out of the machine. Here is a detailed introduction to the corn silage machine:
1.Power System: The source of power for a corn silage machine typically comes from an electric motor, diesel engine, or wheeled tractor. These power equipment transfer power to the machine's main shaft, providing the energy source for the entire workflow.
2.Transmission Mechanism: The transmission mechanism in a corn silage machine includes gearboxes, universal joints, and chains. These components regulate the speed of the power from its source before delivering it to the pressure roller, ensuring that the machine can process materials at a constant speed and force.
3.Pressure Roller: Located between the conveyor belts, the pressure roller feeds the materials to be processed continuously into the chopping mechanism for mincing. This process is critical for the quality of the silage feed as it ensures that the materials are treated evenly and efficiently.
4.Cutting Disc: After being processed by the pressure roller, the materials are then cut into small segments by the high-speed rotating cutting disc and finally ejected out of the grass outlet. This process demonstrates the core function of the silage machine: quickly and effectively converting crops into feed usable in animal husbandry.
Silage Machine Application
Silage Machine Advantages
1.The overall weight of the machine is relatively light, which is half of the quality of similar products in the same industry. It can be hung in front of tractors of various brands without changing the steering wheel, with a compact structural design and stable performance.
2.The vertical cylindrical toothed edge feeding device can adapt to the non parallel harvesting of straw crops such as corn, sorghum, and grass.
3.The forced sequential feeding device can evenly feed the cut materials into the material shredding device in sequence.
4.Material shredding and kneading device, with grass cutting length less than 1.4cm and capable of providing ideal edible feed for livestock.
5.The cutting device adopts a rotating impact cutting blade, which accurately and smoothly cuts the material, and leaves even and consistent stubble.
6.The throwing device can quickly and accurately throw chopped stems into the designated material box, and can also be thrown into the on-board material box. The throwing direction, angle, and position can be adjusted.
Technical data

External dimensions	1310*1400*760mm
Harvesting width	1320mm
Auxiliary Power	35(25.7)HP(kw)
Spindle Speed	≥1140rpm
Work Efficiency	0.27-0.67hm²/h
Structural Style	Hanging double disc type
Type of cutter	Double disc type
Chop length	10-30mm
Cutting height	70mm
Height of the throwing tube	3550mm
Weight	930KG

Production Workshop

Packaging & Shipping
FAQ
1.Can we visit your factory?
Sure.We are in Zhengzhou,Henan Province,China.For overseas clients can fly to Xinzheng International Airport.We can pick you up in the Airport.Or Zhengzhou East Railway Station. We warmly welcome you come to visit our factory.Online video visiting is also welcome.
2.How can we get the exact price?
Contact us and tell what is your raw material and request capacity,we will recommend suitable machine and price.
3.How do you control your quality?
We have passed CE certification,ISO certification.All of our products are 100% inspected and test before shipment.
4.What is the lead time?
For customized machine,it takes about 15 days after deposit.For stock machine,in 3 days.
we will tell exact time customers before order.
5.How about your after-sale service?
We offer manual instruction and engineer training before loading,after shipment we provide 24hours online support,video technical support,field installation assist,remote debugging.
If clients need,we could provide engineers for on site service until the customer can independently running the machines.
6.What is the warranty period for your machine?
12 months warranty.Long term offer spare parts at cost price.
