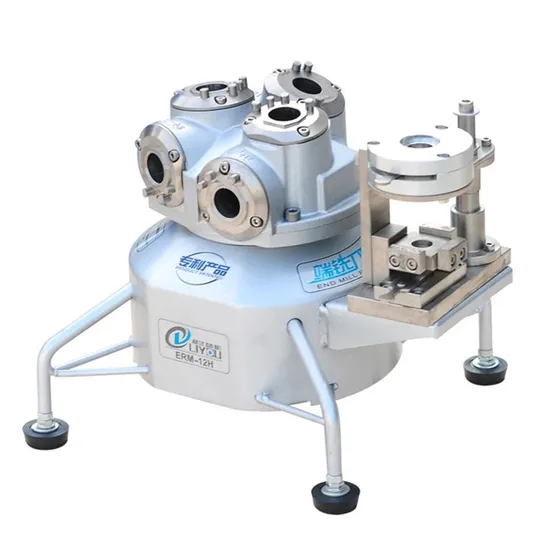

Universal Grinder Cutter with High Precision (New Type)

Product Description

Universal grinder
Patented products, high precision, high efficiency
Optimized structure design
High precision grinding wheel and grinding structure
Unique mill edge adjustment device
Precise holder fixture

Re-sharpening operation steps
1 Mill edge adjust
2 Rear inclined angle grinding
3 Blade edge grinding
4 Front inclined angle grinding

Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.

PRODUCT ADVANTAGES
1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.
2. Grind rear inclined angle, blade edge and front inclined angle.
3. For different end mill grinding, no need to change grinding wheel.
4. Easy to operate, grind one piece need no more than one minute.
5. High precision (0.01mm), normatively re-sharpening.
6. Mill cutting edge can be adjusted suitable for materials to be processed.
2.Product Technical:

Model	ERM-12
Applicable Diameters	Φ2-Φ12mm
Applicable Flutes	2flutes,3flutes,4flutes
Axial Angles	Secondary clearance angle 6,Primary bevel angle 20,End gash angle 30
Grinding wheel	SDC220#(CBN Choose)
Power	220V±10%AC
Motor Output	300W
Rated Speed	6000rpm
Outer Dimension	290*260*230mm
G..W.	15kgs
Standard Accessories	Collet*7pcs, 2flutes holder*8pcs, 3flutes holder*8pcs, 4flutes holder*8pcs, Case*1pcs, Hexagon wrench*2pcs, Brush*1pcs, Power cord*1pcs

3.High Precision grinding wheel and grinding structure
4.Re-sharpening operation steps
5.Standard Accessories
Customers Visiting
Our Service:
*We can produce products according to your drawings.
*We can provide professional suggestions on products
*We are a professional team and wait for you at any time.
FAQ:
Q: What are the advantages of our company?
A: We have perfect supply chain network realizing a convenuient one-stop purchase for all kinds of cutting tools and machine tools accessories.
Q: Can you supply OEM?
A: Yes, we can supply OEM and customization, but the MOQ depends on product.
Q: Do you provide samples? Is it free or extra?
A: We could offer the sample, but you need to pay the charge and the cost of freight.
Q: How long is your delivery time?
A: 3-5 days for normal order, delivery time depends on order qty. If you need to customize, the time will be calculated separately.
Our Market:

Buyer Notice:
In order to improve our efficiency of communication, kindly inform us the following information while sending us inquiries:
1.Specific sizes or drawings .
2.What material will be cutting.
3.Purchase quality of each item.
4.Special requirements.
