Reliable 600 Series Aerial Platforms with Innovative Trunnion Arm Balance Axis Four Wheel Drive

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product Description

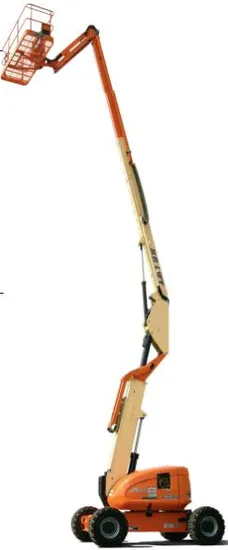

Reliable 600 Series Aerial Platforms with Innovative Trunnion Arm
18 Meters of Powerful Performance
With a narrow chassis for ease of use in confined areas, the 600 series of curved-arm aerial work platforms has the best reach in the industry - with a spanning height of up to 8.1 meters and a horizontal reach of up to 12.12 meters. With a platfo
rm height of 18 meters and 227 kg, it's easy to tackle any job.
Main features
stop at nothing
A balance axle as standard and optional four-wheel drive keep you on track even in off-road situations.
Greater proximity
Models equipped with a small arm add a 70-degree upward and 60-degree downward motion, specializing in those hard-to-reach positions. The width
is 2.13 meters for a narrow chassis for tight spaces.
Improved console
The platform control system has been redesigned for smoother operation, tighter control and higher operating efficiency.

600 Series Aerial Work Platforms with Trunnion Arm

	600AJ
Platform height	18.47 meters
Horizontal reach	12.1 meters
Spanning height	8.1 meters
Turntable rotation	360° Continuous
Platform Load - Restricted Load	227 kg
Platform Load - Unrestricted Load	227 kg
Platform rotation	180° Hydraulic
Small arm (bending range)	130° (+70, -60)
A. Platform Dimensions	0.91 x 2.44 meters
B. Overall Width	2.48 meters
C. Swing	Zero
D. Collection Height	2.54 m
E. Collection Length	8.83 meters
F. Wheelbase	2.44 meters
G. Ground Clearance	30 centimeters
Weight*	10,292 kg
Maximum Ground Load Capacity**	5.25 kg/cm²
Travel speed (2-wheel drive)	6.8 km/h
Travel speed (4-wheel drive)	6.8 km/h
Climbing speed (2-wheel drive)	30% of the total
Climbing degree (4-wheel drive)	45 percent
Turning radius (inside)
2-wheel steering	3.48 meters
4-wheel steering	1.68 meters
Turning Radius (Outside)
2-wheel steering	5.38 meters
4-wheel steering	3.56 meters
Balance swing axle	20 cm
Tire Size/Type	IN355/55D-6.25 low profile tire
Diesel engine Deutz D2.9	36.4 kw
Fuel tank capacity	113.56 liters
Hydraulic Fuel Tank	115.83 liters
Auxiliary power	12 Vdc

*Some options or national standards may result in an increase in overall vehicle weight.
**Ground load capacity applies to standard tires.
When optional equipment is added, the relevant specifications may be changed to comply with the relevant national standards.
Sizes
Working distance schematic and dimensions

FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.
