15-30 Tph Hydraulic Open System Waste Wood Crusher Machine Whole Tree Shredder Wood Chipper Price

Product Description

15-30 TPH Hydraulic Open System Waste Wood Crusher Machine Whole Tree Shredder Wood Chipper Price
Product Description

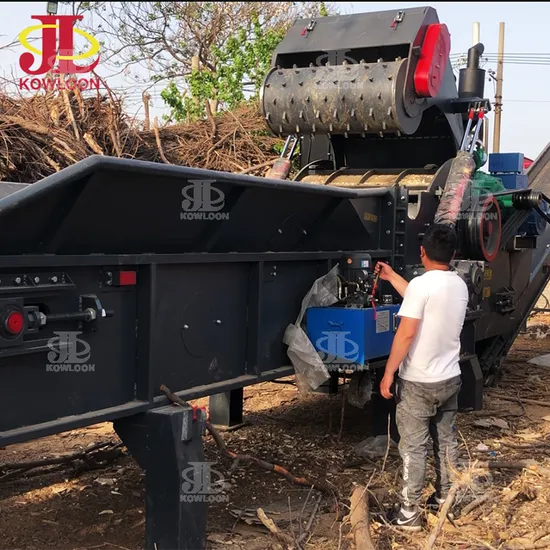

Diesel Power Mobile Wood Chipper Shredder
This diesel power wood chipper shredder machine is one of commercial wood chipper, industial wood chipper. It suits for different diameter logs, whole tree, wood pallet, different boards, timber harvesting, processed residues (such as branches, skin, slats, waste veneer, wood skins, waste wood, etc.), which can also be used to cut non-wood raw materials (such as sugarcane, reed, bamboo, etc.). This mobile chassis hydraulic feed wood chipper machine can chip the raw material into small chips, these chips are raw material of chipboard, density beaverboard and wood fiber board, also could be burning material as sort of fuel. It is suitable for a wide range and the raw material can be diversified.

Model	SWC1000 (stationary)	SWC1300 (stationary)	SWC1600 (stationary)
Infeed size	1000*400 mm	1300*400 mm	1600*400 mm
Main Motor	110 kw (electric)	160 kw (electric)	200 kw (electric)
Infeed roller motors	5.5*2 kw	7.5*2 kw	11*2 kw
Infeed conveyor	Steel chain conveyor, length 4m, width 1m	Steel chain conveyor, length 4m, width 1.2m	Steel chain conveyor, length 6m, width 1.5m
Blade/Hammer	Made of H13
Rotor diameter	φ850mm	φ850mm	φ1000mm
Discharging motor power	1.5 kw	2.2 kw	3 kw
Rotary speed of rotor	510 rpm	510 rpm	365 rpm
Working capacity	10-40tons per hour (according to material)
Weight	9000kg	12000kg	16000kg
Dimension	6000*2150*1750mm	6000*2350*1750mm	6000*2950*1950mm

Model	SWC1000 (trailed)	SWC1300 (trailed)	SWC1600 (trailed)
Infeed size	1000*400 mm	1300*400 mm	1600*400 mm
Main Motor	220HP (diesel engine)	380HP (diesel engine)	580HP (diesel engine)
Infeed roller motors	5.5*2 kw	7.5*2 kw	11*2 kw
Infeed conveyor	Length 4m, width 1m	Length 4m, width 1.2m	Length 6m, width 1.5m
Discharge conveyor	6meter length, hydraulic control foldable belt conveyor
Rotor diameter	φ850mm	φ850mm	φ1000mm
Blade/Hammer	Made of H13
Foldable discharging conveyor motor	1.5 kw	2.2 kw	3 kw
Rotary speed of rotor	510 rpm	510 rpm	365 rpm
Working capacity	10-40 tons per hour (according to material)
Weight	9000kg	12000kg	16000kg
Dimension	6000*2150*1750mm	6000*2350*1750mm	6000*2950*1950mm

Details Show
Diesel Power Wood Chipper Machine Kowloon machinery SWC series diesel power mobile wood chipper machine is sort of multi-functional biomass waste reduction equipment, the rotor designed to be modular style, equipped with different rotors to realize chipping, grinding, chopping functions, widely used to downsize various of materials like wood tree log, nailed wooden waste, green or yellow corn silage, tree bark…etc.
Portable wood crusher is equipped with a subcontracting machine, which is suitable for processing various round straws (straw, corn stover, cotton) and other raw materials. The utility model has the advantages of compact and reasonable structure, simple operation, high production capacity, wide adaptability of raw materials, high quality of crushed granularity, high safety, convenient maintenance, and feeding by using a chain plate, which can make the feeding smoother and greatly improve the production capacity. The ideal equipment for bio-power plants.

Mobile Wood Chipper Machine Features
1. Modular rotors, one machine provide three kinds of rotors for options: hammer rotor, chipping rotor, fine grinding rotor, the blades/hammers are replaceable. 2. Cover of crushing chamber could be opened by hydraulic, ease for maintenance and changing blades. 3. Thick strengthen screen, sieve size is customizable for different requirements to get different size output 4. Forced feeding system is our proven technique; ensure continuously feeding and large working capacity, even big roll of tree logs or high wooden case is no problem to infeed for this monster. 5. High Capacity with larger feeding port than traditional type, which could process big log in arrange of 450mm to 700mm diameter.

Raw Mterial 1. Chipping whole tree, tree log, branch, tree stump root...etc
2. Crushing nailed wooden pallet, nailed wooden waste, ferrous composited wood, tree bark ...etc
3. Fine chopping animal feed like tree branch, elephant grass, corn silage, wheat straw, paddy stalk, sugarcane, palm leaf..etc.

Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
