Low Temperature Resistance Radar Level Gauge for Liquid Oil Fuel Water Solid

Product Description

Product Description

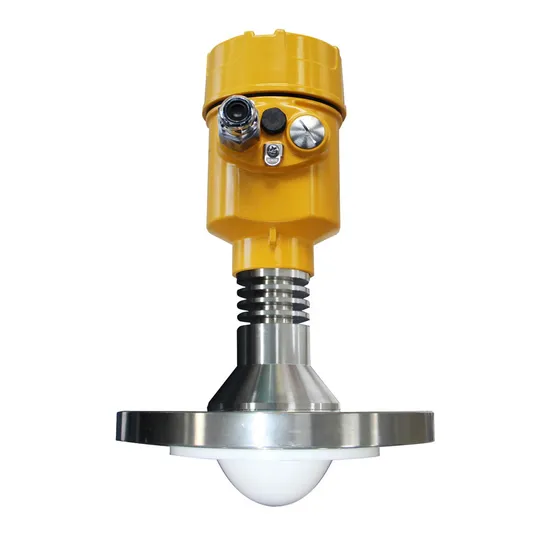

The level gauge can perform non-contact continuous measurement of the height of materials (solid or liquid) in closed or open containers during industrial production processes (continuous detection of material height). The photo of the compact radar level gauge is shown in the upper right picture.
76-81 GHZ frequency-modulated continuous wave (FMCW) radar products for four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 120m, and the blind area can be 10 cm. Due to its higher operating frequency and shorter wavelength, it is particularly suitable for solid applications, and the working mode of receiving electromagnetic waves through lens emission has unique advantages in high dust and harsh temperature environments (+200ºC). The meter offers flange or thread fixing for easy installation.
Product Features
1. Based on the self-developed CMOS millimeter wave RF chip, more compact RF architecture, higher signal-to-noise ratio, and smaller blind area are realized.
2. 5GHz operating bandwidth, so that the product has a higher measurement resolution and measurement accuracy.
3. The narrowest 3° antenna beam Angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient.
4. The wavelength is shorter and has better reflection characteristics on the solid surface, so there is no need to use the universal flange for aiming.
5. Support mobile phone Bluetooth debugging, convenient for on-site personnel maintenance work.
Product Parameters

Transmitting Frequency	76GHz~81GHz, FM scan frequency width 5GHz
Measurement Range	0.1~35m 0.3~85m 0.6~120m
Measurement Accuracy	±1mm
Beam Angle	3°,8°
Dielectric Constant Range	>=2
Power Supply Range	18~28.0VDC, 4-wire system (< 1W)
Communication Protocol	HART/MODBUS bus
Signal Output	4~20mA or RS-485
Industrial Temperature/Humidity	-4~85ºC/≤95%RH
Shell Material	Aluminum alloy, Stainless steel
Antenna Type	lens antenna, available with lens antenna shield/anti-corrosion antenna/antenna radiator paste/quartz isolation flange
Process Pressure	-0.1~2MPa
Product Size	Ø100*270mm
Cable Entry	M20*1.5
Recommended Cables	AWG18 or 0.75mm²
Protection Class	IP67
Installation	thread or flange
Net Weight/Gross Weight	2.480Kg/2.995Kg

Installation Instructions
