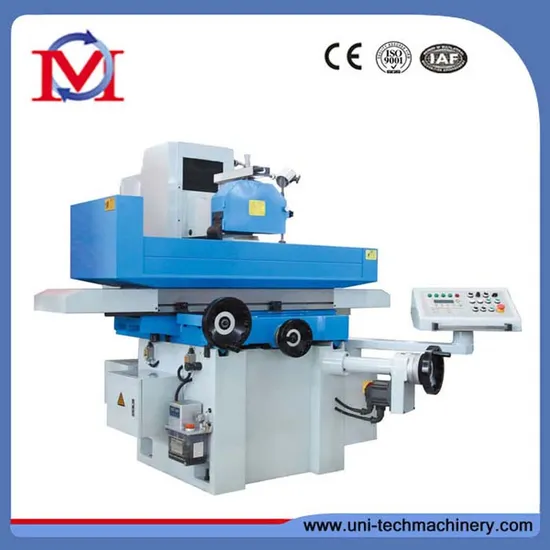

Saddle Moving Surface Grinding Machine (SGA3063AH)
Basic Info.
Model NO.
SGA3063AH
Type
Surface Grinding Machine
Processing Object
Other
Abrasives
Grinding Wheel
Controlling Mode
Electric
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Sga3063ah
Saddle Moving Surface Grinding Machine
Table Size
305X635mm
Max.Distance Spindle Center to Table
580mm
Table Cross Travel
340mm
Table Longitudinal Travel
765mm
Rapid Speed
990mm/Min
Electro Magnetic Chuck Size
300X600mm
Auto Feed
0.1-8mm/Min
Max Loading Capacity of Table
270kg
Gross Weight
2900kg
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
8460190000
Production Capacity
200sets/Month
Product Description
Product Description
AH: Auto cross feed, hydraulic longitudinal feed, manual vertical feed
AHR: Auto cross feed, hydraulic longitudinal feed, rapid vertical feed
AHD: Auto cross feed, hydraulic longitudinal feed, automatic vertic feed
Product Parameters
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings Automatic transverse and longitudinal feed Rapid feed for setup to desired work height(HFS VC) Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC) Double table V-guide in transverse table, V-guide and flat guides in longitudinal table Table guide ways are hardened, ground, and PTFE(polytetrafuorethylene)counterlaminated-ensuring maximum wear resistance High table load capacity for heavy parts External hydraulic unit ensures high temperature stability Automatic central lubrication
| MODEL | Unit | SG2050H/AH | SGA2550AH | SGA3063AH | SGA30100AH | SGA4080AH | SGA40100AH | |
| SG2050AHR | SGA2550AHR | SGA3063AHR | SGA30100AHR | SGA4080AHR | SGA40100AHR | |||
| SG2050AHD | SGA2550AHD | SGA3063AHD | SGA30100AHD | SGA4080AHD | SGA40100AHD | |||
| Table size(W x L) | mm | 200x460 | 250x500 | 305x635 | 305x1020 | 406x813 | 406x1020 | |
| Max longitudinal travel | mm | 510 | 560 | 765 | 1130 | 910 | 1130 | |
| Max cross travel | mm | 238 | 275 | 340 | 340 | 450 | 450 | |
| Max distance from spindle center to table | mm | 450 | 450 | 580 | 580 | 580 | 580 | |
| Electro magnetic chuck size | mm | 200x460 | 250x500 | 300x600 | 300x1000 | 400x800 | 400x1000 | |
| Speed of table longitudinal movement | m/min | 7-23 | ||||||
| Table transverse movement | Auto feed | mm/min | 0.1-8 | |||||
| Rapid speed | mm/min | 990 | ||||||
| Feed of handwheel | Mm/div | 0.02 | ||||||
| Wheelhead vertical movement | Auto feed | mm | (H/AH/AHR model)/0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model) | |||||
| Rapid speed | Mm/min | (H/AH model) /460(for AHR model) | (H/AH model) /460( Only for AHR/AHD model) | |||||
| Feed of handwheel | Mm/div | 0.005 | ||||||
| Grinding wheel | Speed | rpm | 2850(50Hz) 3450(60Hz) | 1450(50Hz) 1750(60Hz) | ||||
| Size | mm | 200x20x31.75 | 350x40x127 | |||||
| Spindle motor | kw | 2.2 | 2.2 | 5.5 | ||||
| Hydraulic motor | kw | 0.75 | 2.2 | |||||
| Cooling pump motor | kw | 0.04 | 0.125 | |||||
| Elevating motor | kw | (AH mode) 0.25(AHR mode) 0.5(AHD mode, servo motor) | ||||||
| Cross feed motor | kw | 0.04 | ||||||
| Max loading capacity of table | Kg | 120 | 180 | 270 | 400 | 500 | 600 | |
| Total rated power | kw | 33 | 3.7 | 9 | ||||
| Height of machine | mm | 1675 | 1890 | |||||
| Floor space(LxW) | mm | 2050x1400 | 2300x1600 | 2900x2200 | 4400x2200 | 3600x2400 | 4400x2400 | |
| Gross weight | kg | 1600 | 1800 | 2900 | 3300 | 3500 | 4000 | |
| Package dimensions(L x W x H) | mm | 1900x1720x2175 | 2000x2100x2175 | 2350x2220x2150 | 2950x2220x2210 | 2850x2270x2180 | 2950x2270x2210 | |
| Standard accessories: Wheel flange Balancing arbor Wheel exactor Coolant tank Working lamp Tool box and tools Wheel dresser stand not include diamond pen, Standard grinding wheel Leveling wedge and bolt Standard electro magnetic chuck Built in electro magnetic chuck controller PLC(AHD)\PLC auto grinding controller only for AHD models Y-AXIS WITH STEP MOTOR, Z-AXIS WITH SERVE MOTOR | Optional accessories: Electric Magnetic chuck Balance stand Wheel flange Coolant with magnetic separator and paper filter Parallel wheel dresser screw rod type MAGNETIC SEPARATOR |
